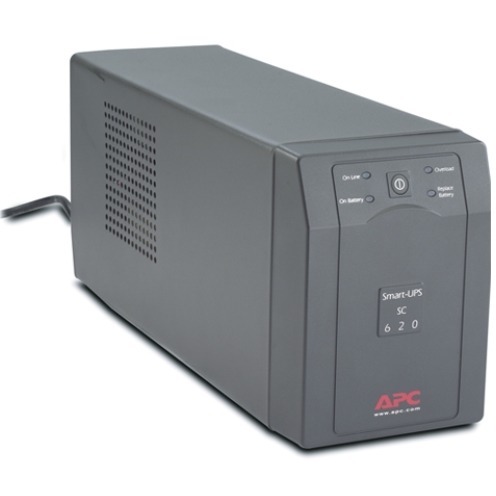

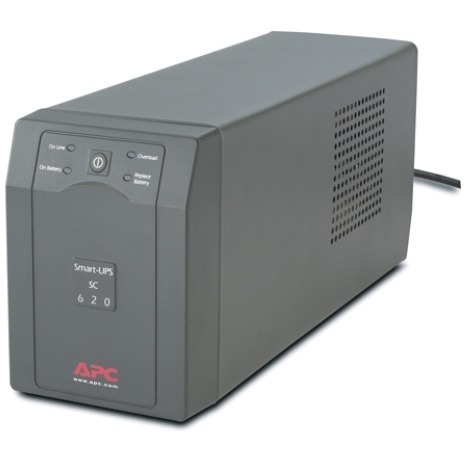

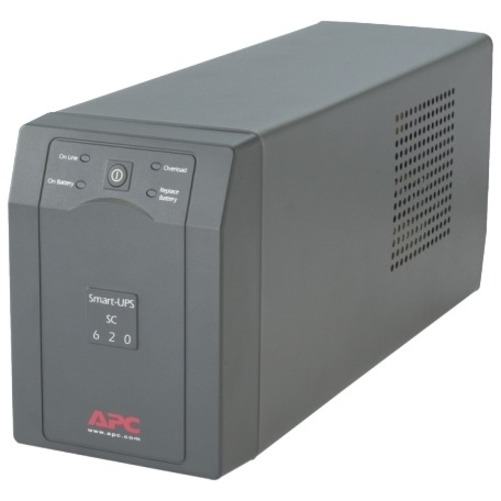

APC SC620 UPS

The APC SC620 UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
APC Smart-UPS Series - APC Smart-UPS SC 620VA 120V- Not sold in CO, VT and WA - 620VA/390W - 5.5 Minute Full Load
  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 5.50 minute runtime on full load to preserve critical data from power shortage interruptions
  • SC620 not sold in Vermont - select available recommended replacement BR700G
Read More

Need a different version? See all APC Smart-UPS Series Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
APC SC620 UPS
APC SC620 UPS
APC SC620 UPS
APC SC620 UPS
APC SC620 UPS
APC SC620 UPS APC SC620 UPS APC SC620 UPS APC SC620 UPS APC SC620 UPS

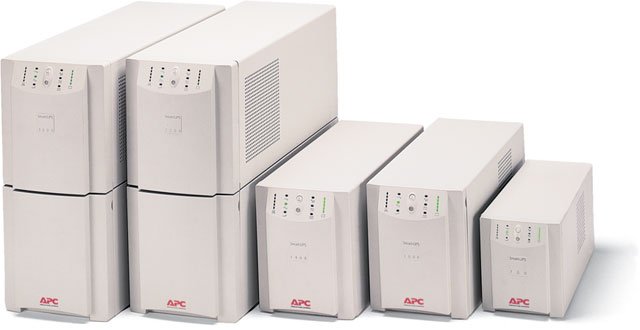

APC Smart-UPS Series Accessory Model Overview
Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.
APC SC620 UPS Overview

Smart-UPS protects your data by supplying reliable, network grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.

More from the Manufacturer

Technical Information

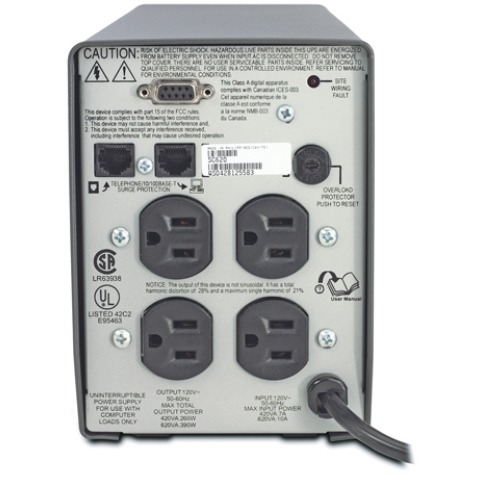

Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
4 x NEMA 5-15R
Dataline Protection:
RJ-45
Emergency Power OFF:
Optional
Cord Length:
6 ft
Power Description
Load Capacity:
620 VA/390 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Stepped Sine Wave
Surge Energy Rating:
412 J
Management
Alarm:
  • On Battery
  • Low Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:

LED status display with:

  • On Line
  • On Battery
  • Replace Battery
  • Overload indicators
Interfaces/Ports
Serial Port:
Yes
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5.50 Minute
Backup/Run Time (Half Load):
15.70 Minute
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Thermal Dissipation:
20.51 W
Physical Characteristics
Product Color:
Gray
Height:
7"
Width:
5"
Depth:
15"
Form Factor:
Tower
Weight (Approximate):
27 lb
Miscellaneous
Package Contents:
  • Smart-UPS SC 620VA
  • CD with software
  • Smart UPS signalling RS-232 cable
  • User manual
    • Additional Information:
    • Units per Pallet: 40
    • Boost and Trim Automatic Voltage Regulation (AVR)
    • Adjustable voltage sensitivity
    • Adjustable voltage transfer points
    • Automatic self test
    • Cold start capable
    • Serial Connectivity
    • Safety agency approved
    Certifications & Standards:
    • CSA
    • FCC Part 15 Class B
    • NOM,
    • UL 1778
    • Meets UL 1449
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    GTIN: 0686727746102, 0731304222620, 0993246451340, 4923773118849
    UPC: 686727746102, 731304222620, 778889220115, 993246451340
    EAN: 0686727746102, 0731304222620, 0993246451340, 4923773118849
    UNSPSC: 39121011
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The APC SC620 UPS is also known as APC-SC620
