APC SC450RM1U UPS

The APC SC450RM1U UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

APC Smart-UPS Series - APC Smart-UPS SC 450VA 120V - 1U Rackmount/Tower- Not sold in CO, VT and WA - 450VA/280W - 5.9 Minute Full Load - 4 x NEMA 5-15R

Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
Multiple mounting methods - Allows for standardization on one product for use in different environments.
Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Need a different version? See all APC Smart-UPS Series Accessories

Discontinued Need Assistance?

Add to Quote

Overview

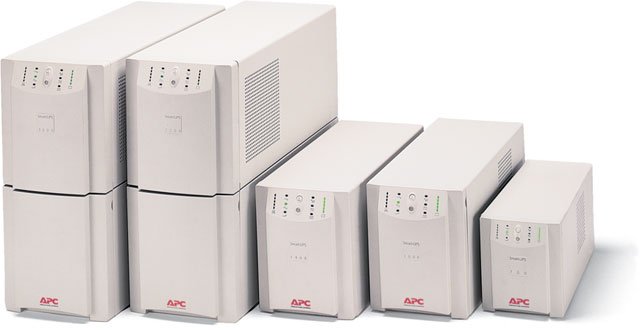

APC Smart-UPS Series Accessory Model Overview

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

APC SC450RM1U UPS Overview

Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection.

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA 5-15P

Receptacles:

4 x NEMA 5-15R

Dataline Protection:

RJ-45
RJ-11

Emergency Power OFF:

Optional

Cord Length:

6 ft

Power Description

Load Capacity:

450 VA/280 W

Input Voltage:

110 V AC

Output Voltage:

120 V AC

Surge Energy Rating:

400 J

Management

Alarm:

On Battery
Low Battery
Configurable Delay

Battery Management:

Intelligent battery management

Controls/Indicators

Status Indicators:

On Line
On Battery
Replace Battery
Overload

Interfaces/Ports

Serial Port:

Yes

Battery Information

Battery Characteristics:

Maintenance-free

Battery Chemistry:

Sealed Lead Acid (SLA)

Backup/Run Time (Full Load):

5.90 Minute

Backup/Run Time (Half Load):

19.40 Minute

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

113°F (45°C)

Thermal Dissipation:

9.96 W

Physical Characteristics

Color:

Gray

Height:

Width:

17"

Depth:

15"

Rack Height:

Form Factor:

Rack/Tower

Weight (Approximate):

24 lb

Miscellaneous

Package Contents:

Smart-UPS SC 450VA Rackmount/Tower
CD with software
Rack Mounting Brackets
Smart UPS signalling RS-232 cable
User Manual

Additional Information:

Front-access servicing
Multiple mounting methods
Rack/Tower convertible
Boost and Trim Automatic Voltage Regulation (AVR)
Power conditioning

Certifications & Standards:

CSA
FCC Part 15 Class A
UL 1778

Warranty

Limited Warranty:

2 Year

Item Numbers

UPC: 643749352346, 649664745850, 731304222705, 777786278724, 809385144367, 818241540601, 818273997435, 993246264384

UNSPSC: 39121011
