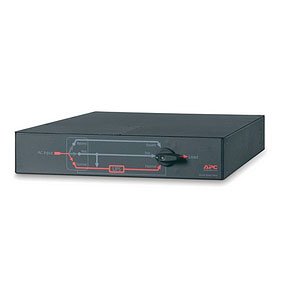

APC SBP6KRMT2U UPS

APC - Service Bypass Panel-200/ 208/240V, 50A, MBB, L6-30P/HW
$958.60
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

Technical Information

  • Receptacles:
    • 2 x NEMA L6-20R
    • 1 x NEMA L6-30R
  • Plug/Connector Type:
    • Hard Wire 3-wire 2PH + G
    • NEMA L6-30P
  • Protection Type: Overload

General Information

  • Product Type: Bypass Panel
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: 19" Rack Mountable 30A Maintenance Bypass Panel

Physical Characteristics

  • Height: 3.5"
  • Width: 17"
  • Depth: 26"
  • Form Factor: 19" Rack-mountable
  • Weight (Approximate): 30 lb

Power Description

  • Current:
    • 30 A Line Current Per Phase
    • 30 A Input Current Per Phase
    • 30 A Total Current Draw Per Phase
  • Load Capacity: 6 kVA
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 200 V AC Nominal
    • 208 V AC Nominal
  • Input Voltage Range:
    • 200 V ACNominal
    • 208 V ACNominal
  • Frequency:
    • 50 Hz
    • 60 Hz

Other

  • Package Contents:
    • 19" Rack Mountable 30A Maintenance Bypass Panel
    • Rack Mounting Brackets
    • Installation Guide
    • User Manual
    • 19" Rack Mountable 30A Maintenance Bypass Panel
    • Rack Mounting Brackets
    • Installation Guide
    • User Manual

Warranty

  • Limited Warranty: 2 Year
Protect Your Product

Full specifications (PDF)

Brand APC
Model Back-UPS Series


The APC SBP6KRMT2U is also known as American Power Conversion APC-SBP6KRMT2U .
