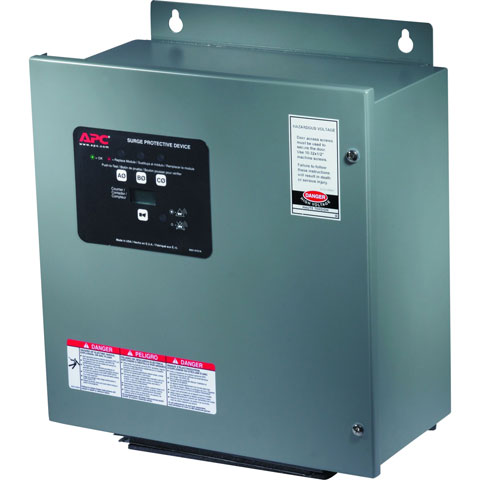

APC - SurgeArrest Panelmount 208/120 V120kA/ph with Surge Counter
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

General Information

  • Product Type: Surge Suppressor/Protector
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Model: PMF3XS-B
  • Product Name: SurgeArrest PMF3XS-B Surge Suppressor
  • Product Line: SurgeArrest

Technical Information

  • Protection Type:
    • Spikes
    • Surges
    • Transient
    • EMI/RFI Noise Filtering

Physical Characteristics

  • Height: 14"
  • Width: 12"
  • Depth: 6"
  • Weight (Approximate): 19 lb
  • Form Factor: Panel-mountable

Power Description

  • Current: 120 kA Surge Current
  • Input Voltage:
    • 120 V AC
    • 208 V AC
  • Output Voltage:
    • 120 V AC
    • 208 V AC
  • Frequency:
    • 50 Hz
    • 60 Hz


  • Package Contents:
    • SurgeArrest PMF3XS-B Surge Suppressor
    • User Manual
    • SurgeArrest PMF3XS-B Surge Suppressor
    • User Manual
  • Additional Information: Input Connection: Hard Wire 5-wire (3PH + N + G)


  • Limited Warranty: 10 Year
Protect Your Product

Full specifications (PDF)

Brand APC
Model Back-UPS Series

The APC PMF3XS-B is also known as American Power Conversion APC-PMF3XS-B or PMF3XSB .
