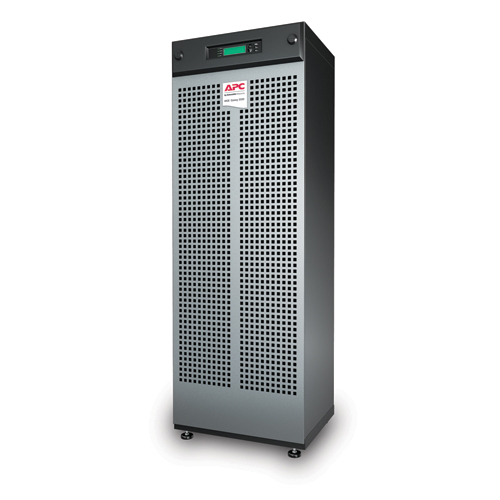

APC G35T15KF4B4S UPS


0.0

(No reviews)

Be the first to

Write a Review
APC MGE Galaxy 3500 - 15kVA 208V wit 4 Battery Modules, Start-up 5X
$17,325.00
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Performance power protection for critical applications

The MGE Galaxy 3500 offers centralized 3 phase power protection with the reliability of the MGE product family. Ideal for commercial and technical facilities as well as industrial applications, the MGE Galaxy 3500 includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. The parallel capability for redundancy and capacity, new optional bypass panels, and extended run battery frames provide increased flexibility. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure wires, transformers, and generators. The built in Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface. Serviceability is greatly enhanced by user-replaceable batteries, front access servicing, and included start-up service for maximized configurabililty. All these features make the MGE Galaxy 3500 the easiest UPS in its class to deploy, manage and maintain.

Technical Information

  • Receptacles:
    • 1 x Hard Wire 4-wire 3PH + G
    • 1 x Hard Wire 5-wire 3PH + N + G
    • 1 x Screw Terminal
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
  • Interfaces/Ports: RS-232 Serial

General Information

  • Product Type: Dual Conversion Online UPS
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: MGE Galaxy 3500 15 kVA Tower UPS

Physical Characteristics

  • Height: 58.7"
  • Width: 20.6"
  • Depth: 33"
  • Form Factor: Tower
  • Weight (Approximate): 1318 lb

Interfaces/Ports

  • Modular Slots: SmartSlot
  • Interfaces/Ports: RS-232 Serial

Other

  • Package Contents:
    • MGE Galaxy 3500 15 kVA Tower UPS
    • 4 x Battery Modules ship installed
    • Bolt Down Brackets
    • CD with Software
    • Installation Guide
    • Power Modules ship installed
    • Smart UPS Signalling RS-232 Cable
    • Start-Up Service
    • User Manual
    • Web/SNMP Management Card
    • MGE Galaxy 3500 15 kVA Tower UPS
    • 4 x Battery Modules ship installed
    • Bolt Down Brackets
    • CD with Software
    • Installation Guide
    • Power Modules ship installed
    • Smart UPS Signalling RS-232 Cable
    • Start-Up Service
    • User Manual
    • Web/SNMP Management Card

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 160 V AC to 240 V AC Mains Operation
  • Load Capacity: 15 kVA/12 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 208 V AC 3-phase Nominal
  • Frequency:
    • 40 to 70 Hz Input
    • 57 to 63 Hz Output

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Automatic
    • Internal
    • Maintenance
    • Static

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.46 Hour 12 kW Full Load
    • 1.15 Hour 6 kW Half Load
  • Battery Recharge Time: 5 Hour Typical

Scalability

  • Modules: 4 x Battery Module

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: APC MGE Galaxy 3500 UPS
Protect Your Product

The APC G35T15KF4B4S is also known as American Power Conversion APC-G35T15KF4B4S .
