APC G35T10KF1B2S Products

Part Number: G35T10KF1B2S
Model: Parts
$12,528.71
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hard Wire 5-wire
Receptacle Type
Hard Wire 4-wireHard Wire 5-wireScrew Terminal
Receptacle Detail
1 x Hard Wire 4-wire1 x Hard Wire 5-wire1 x Screw Terminal
Load Capacity (VA)
10000 VA

Product Description:

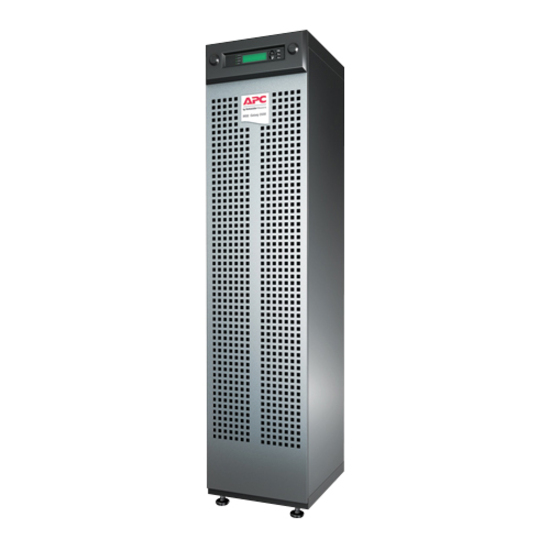

  APC MGE Galaxy 3500 10 kVA Tower UPS - 6.6 Minute Full Load - 10kVA - SNMP Manageable

APC Parts Accessory Model Overview

Products and parts from APC.
APC G35T10KF1B2S Products Overview

APC MGE Galaxy 3500 10 kVA Tower UPS offers centralized 3 phase power protection with the reliability of the MGE product family. Ideal for commercial and technical facilities as well as industrial applications, this UPS includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability.

Technical Information
Plug/Connector Type:
Hard Wire 5-wire
Receptacle Type:
  • Hard Wire 4-wire
  • Hard Wire 5-wire
  • Screw Terminal
Receptacle Detail:
  • 1 x Hard Wire 4-wire
  • 1 x Hard Wire 5-wire
  • 1 x Screw Terminal
Power Description
Load Capacity (VA):
10000 VA
Input Voltage:
220 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
27 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Automatic
  • Internal
  • Maintenance
  • Static
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Modular Slots:
  • SmartSlot
  • 1 x Battery
Battery Information
Battery Characteristics:
Maintenance-free/Sealed/Spill Proof
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6.60 Minute
Backup/Run Time (Half Load):
20 Minute
Typical Battery Recharge Time:
5 Hour
Physical Characteristics
Form Factor:
Tower
Height:
58.7"
Width:
14"
Depth:
33"
Weight (Approximate):
671.10 lb
Miscellaneous
Package Contents:
  • MGE Galaxy 3500 10 kVA Tower UPS
  • 1 x Battery Module ship installed
  • Bolt Down Brackets
  • CD with Software
  • Installation Guide
  • Power Modules ship installed
  • Smart UPS Signalling RS-232 Cable
  • Start-Up Service
  • User Manual
  • Web/SNMP Management Card
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 39121011
