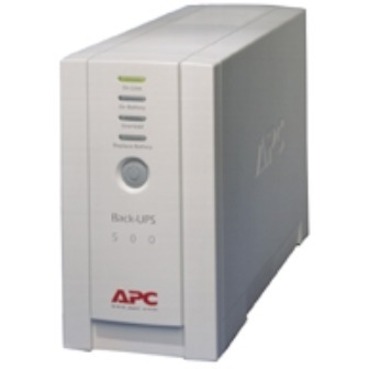

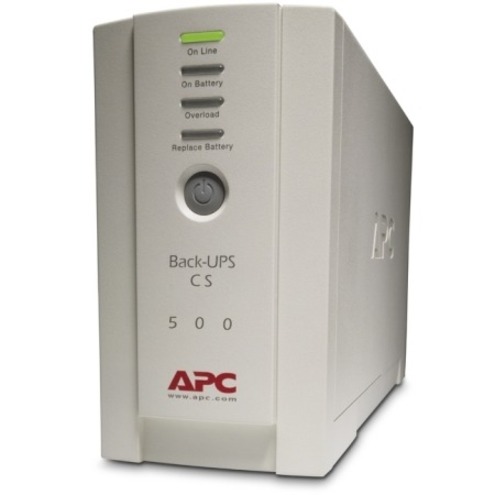

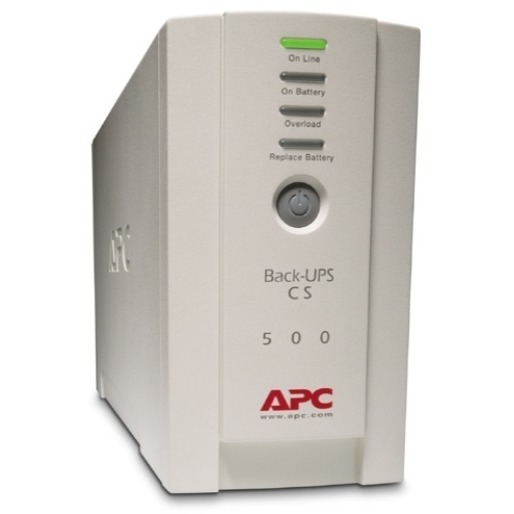

APC BK500 UPS

APC Back-UPS Series - APC Back-UPS CS 500VA - 8 Hour Recharge - 3 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-15R, 3 x NEMA 5-15R
  • Building Wiring Fault Indicator - This LED informs users of potentially dangerous wiring problems in the wall circuit.
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Dataline surge protection - Provides protection of connected equipment from power surges on the data lines.
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Lifetime data recovery warranty - Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
  • Serial connection - Use your PC to access additional power protection and management features for your UPS via a serial port.
  • Simple battery replacement - Increases UPS availability by allowing quick, easy battery replacement.
  • Transformer-block spaced outlets - Protect equipment with input transformer blocks without blocking access to other receptacles.
  • USB connection - Use your PC to access additional power protection and management features for your UPS via a USB Port.
Read More

Need a different version? See all APC Back-UPS Series Accessories

$205.12
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
APC BK500 UPS
APC BK500 UPS
APC BK500 UPS
APC BK500 UPS
APC BK500 UPS
APC BK500 UPS
APC BK500 UPS APC BK500 UPS APC BK500 UPS APC BK500 UPS APC BK500 UPS APC BK500 UPS
Full specifications (PDF)
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC BK500 UPS Overview
Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.

More from the Manufacturer

Full specifications (PDF)
Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15P
Receptacle Detail:
3 x NEMA 5-15R
Number of Battery & Surge Outlets:
6
Dataline Protection:
RJ-11
Cord Length:
6 ft
Power Description
Load Capacity:
500 VA
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Input Current:
410 mA
Power Consumption:
300 W
Waveform Type:
Stepped Approximated Sine Wave
Surge Energy Rating:
480 J
Management
Alarm:
  • On Battery
  • Low Battery
  • Overload
Controls/Indicators
Status Indicators:
LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3 Minute
Backup/Run Time (Half Load):
15 Minute
Typical Battery Recharge Time:
8 Hour
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Sound Emission (A-Weighted):
45 dB(A)
Thermal Dissipation:
7.03 W
Physical Characteristics
Product Color:
Beige
Height:
6.5"
Width:
3.6"
Depth:
11.2"
Form Factor:
Tower
Weight (Approximate):
13.82 lb
Miscellaneous
Package Contents:
  • BK500 120V Backup System
  • CD with software
  • Cord management straps
  • USB cable
  • User manual
    • Additional Information:
    • Additional Surge Protected Outlets
    • Cord Management
    • Software
    • USB compatible
    Certifications & Standards:
    cUL Listed
    Recycled:
    No
    Assembly Required:
    No
    Energy Star:
    Yes
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Country of Origin:
    Philippines
    Warranty
    Limited Warranty:
    3 Year
    Additional Warranty Information:
    3 years repair or replace
    Item Numbers
    GTIN: 0731304016304, 0995478267522, 0996593406636, 0999569245505
    UPC: 731304016304, 733457732872, 818216962827, 818243095369, 995478267522, 996593406636, 999569245505
    EAN: 0731304016304, 0995478267522, 0996593406636, 0999569245505
    UNSPSC: 39121011
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The APC BK500 UPS is also known as APC-BK500
