APC AP9617 Accessory

The APC AP9617 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
APC Rack PDU - APC-IMSourcing UPS Network Management Card - SmartSlot - 1 x Network (RJ-45) Port(s) - Serial
Discontinued Need Assistance?
Add to Quote
APC Rack PDU Accessory Model Overview
APC Switched Rack Power Distribution Units (PDUs) address power management problems in today's IT environment through individual outlet control, power on and off delays, current monitoring, alarm thresholds, and network management. Individual outlet control to turn outlets on, turn outlets off, or recycle power to equipment allows users to reboot locked-up equipment and avoid unauthorized use of outlets. Power delays allow users to determine the order in which equipment is powered up or down. The Switched Rack PDUs provide an aggregate current draw, which can be viewed remotely or locally, via digital display.

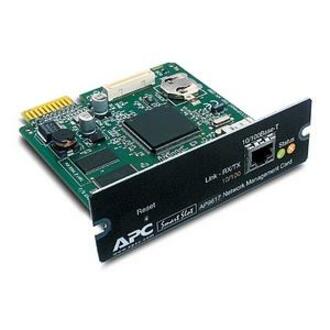

APC AP9617 Accessory Overview

APC's UPS Network Management Cards provide management of an individual UPS by connecting the UPS directly to the network with a dedicated IP address, avoiding the need for a proxy such as a server. Embedded technology provides exceptional reliability and enables the UPS to reboot hung equipment. Manage each APC UPS individually via web browser, Telnet or SSH. Notification features inform you of problems as they occur. For protected servers, the included PowerChute Network Shutdown software provides graceful, unattended shutdown in the event of an extended power outage.

Technical Information
Proprietary Slot Type:
SmartSlot
Management:
Data Logging
Protocols:
  • HTTP
  • SNMP
  • Telnet
  • NTP
Interfaces/Ports
Serial:
Yes
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Physical Characteristics
Color:
Black
Height:
1.5"
Width:
4.8"
Depth:
4.3"
Weight (Approximate):
4.80 oz
Miscellaneous
Package Contents:
  • UPS Network Management Card
  • CD with software
  • User Manual
Additional Information:
  • Flash Upgradeable
  • Graceful System Shutdown

Approvals:

  • BSMI
  • C-tick
  • CE
  • EN 55022 Class A
  • EN 55024
  • FCC Part 15 Class A
  • VCCI
Compatibility:
  • APC Silcon DP300E
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43222633
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The APC AP9617 Accessory is also known as APC-AP9617
