You've just added this product to the cart:

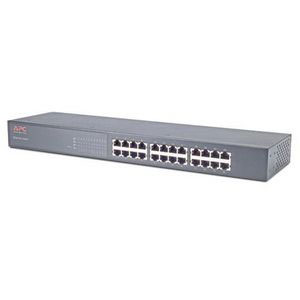

APC AP9224110 Power Device

APC Accessories - 24 PORT 10/100 UNMANAGED SWITC H
$406.53
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

General Information

  • Product Type: Ethernet Switch
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Model: AP9224110
  • Product Name: 24-Port 10/100 Ethernet Switch

Physical Characteristics

  • Height: 1.8"
  • Width: 17.3"
  • Depth: 4.7"
  • Form Factor:
    • Rack-mountable
    • Desktop
  • Weight (Approximate): 2.60 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 24
  • Total Number of Network Ports: 24
  • Port/Expansion Slot Details: 24 x Fast Ethernet Network

Other

  • Package Contents:
    • 24-Port 10/100 Ethernet Switch
    • Power cord
    • Four rubber feet
    • Rack mount kit
    • User's Guide
    • 24-Port 10/100 Ethernet Switch
    • Power cord
    • Four rubber feet
    • Rack mount kit
    • User's Guide
  • Certifications & Standards:
    • EIA/TIA 568
    • IEEE:
    • IEEE 802.1p CoS
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3x Flow control
    • Product Safety:
    • cUL
    • UL
    • 60950
    • EN60950
    • TÜV
    • EMC:
    • FCC part 15
    • EN55022
    • VCCI Class A
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
  • Additional Information:
    • Access Method: CSMA/CD
    • Input Connection Type: IEC-320 C14

Media & Performance

  • Ethernet Technology: Fast Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology:
    • 10Base-T
    • 10/100Base-TX
  • Twisted Pair Cable Standard: Category 5

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

Warranty

  • Limited Warranty: 2 Year

Network & Communication

  • Layer Supported: 2
Protect Your Product

Full specifications (PDF)

Brand APC
Model Back-UPS Series


The APC AP9224110 is also known as American Power Conversion APC-AP9224110 .
