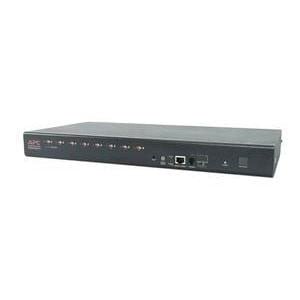

APC AP5201 Power Device

APC 8 Port Multi-Platform Analog KVM - AP5201 8 Port Multi-Platform Analog KVM
$691.80
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
APC Power Protection products are designed to protect your computer, data, and on a larger scale, your company.

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

General Information

Technical Information

  • Number of Computers Supported: 8
  • Number of Local Users Supported: 1
  • Minimum Scan Interval: 1 Second

Physical Characteristics

  • Height: 1.8"
  • Width: 17"
  • Depth: 8.3"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 10 lb
  • Color: Black
  • Rack Height: 1U

Interfaces/Ports

  • VGA: Yes
  • Number of Network (RJ-45) Ports: 1
  • Network (RJ-45): Yes
  • PS/2 Port: Yes
  • Number of PS/2 Ports: 2
  • Number of VGA Ports: 1

Other

  • Platform Supported: PC
  • Package Contents:
    • 1 x KVM Switch AP5201 (8 port)
    • 1 x Configuration cable
    • 1 x L5-15 to IEC power cable
    • 2 x Brackets for a 19-inch enclosure
    • 1 x Installation Manual
    • 1 x KVM Switch Utility CD
    • 1 x Warranty card
    • 1 x KVM Switch AP5201 (8 port)
    • 1 x Configuration cable
    • 1 x L5-15 to IEC power cable
    • 2 x Brackets for a 19-inch enclosure
    • 1 x Installation Manual
    • 1 x KVM Switch Utility CD
    • 1 x Warranty card
  • Certifications & Standards:
    • FCC Part 15 Class A
    • ICES Class A: Canadian ICES-003
    • VCCI Class A
    • AS/NZS 3548 (C-Tick) Class A
    • ICES-003
    • IEC 60950
    • UL 60950
  • Additional Information:
    • The keep-alive feature assures all the keyboard and mouse connections work properly if the KVM Switch loses power temporarily.
    • Auto-sensing of KVM station positions for serially-connected installations, which are indicated on the front panel LED.
    • Port names automatically reconfigure when the station sequence is changed.
    • No software is required; select a computer by using the On-Screen Display (OSD) menu or Hot Key combination.
    • AutoScan offers monitoring of connected computers.

Power Description

  • Power Consumption: 8 W
  • Input Voltage:
    • 240 V AC
    • 9 V DC

Video

  • Maximum Video Resolution: 1920 x 1440
  • Graphic Mode:
    • VGA
    • SVGA

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)



The APC AP5201 is also known as American Power Conversion APC-AP5201 .
