AOPEN 91.DE800.A0B0 Products

Part Number: 91.DE800.A0B0
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Manufacturer
AMD
Processor Type
R-Series

Product Description:

  AOpen Digital Engine DE6100 Desktop Computer - AMD R-Series R-464L Quad-core (4 Core) 2.30 GHz - 4 GB RAM DDR3 SDRAM - 320 GB HDD - AMD Radeon HD 7660G DDR3 SDRAM - 90 W
Explore all AOPEN Parts Accessories
Add to Quote
AOPEN 91.DE800.A0B0 Products
AOPEN 91.DE800.A0B0 Products
AOPEN 91.DE800.A0B0 Products
AOPEN 91.DE800.A0B0 Products
AOPEN 91.DE800.A0B0 Products AOPEN 91.DE800.A0B0 Products AOPEN 91.DE800.A0B0 Products AOPEN 91.DE800.A0B0 Products

AOPEN Parts Accessory Model Overview

Products and parts from AOPEN.
AOPEN 91.DE800.A0B0 Products Overview

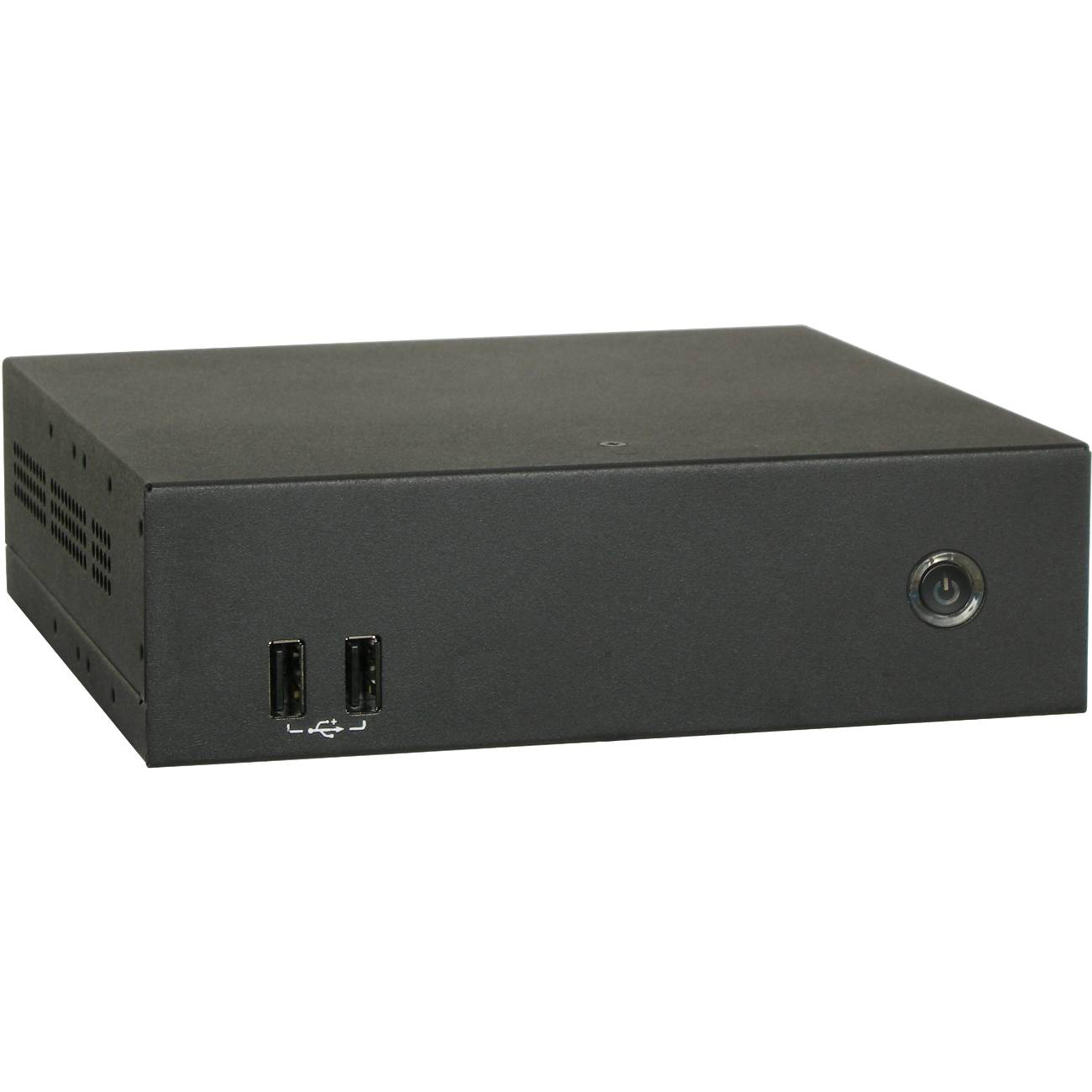

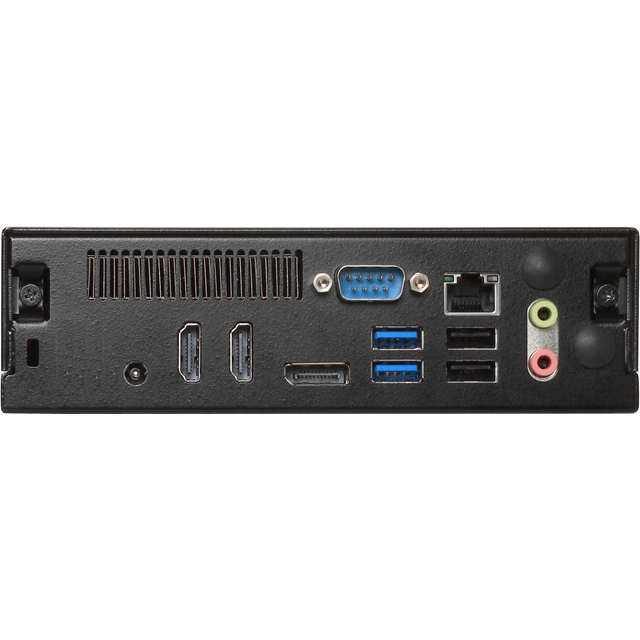

AOpen's Digital Engine® DE6100 comes equipped with AMD's Embedded R-series APU Dual/Quad core TDP 35W CPUs to process high quality videos and images for digital signage applications. With the integrated DisplayPort and dual HDMI ports, the DE6100 can be configured for up to three screens. Rounding out the I/O ports with 2 USB 3.0 ports in the rear panel (and 2 USB 2.0 ports in front and back panels), dual WLAN antenna, Gigabit LAN, RS232 port and optional m-SATA for various expansion options.

With its rugged and compact design, the Digital Engine® DE6100 is very flexible option in multiple screen applications including digital signage, KIOSK, POS, and advertising displays.

Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
AMD
Processor Type:
R-Series
Processor Model:
R-464L
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.30 GHz
Cache:
4 MB
64-bit Processing:
Yes
Chipset
Chipset Manufacturer:
AMD
Chipset Model:
A70M
Memory
Standard Memory:
4 GB
Maximum Memory Supported:
16 GB
Memory Technology:
DDR3 SDRAM
Number of Total Memory Slots:
2
Storage
Total Hard Drive Capacity:
320 GB
Hard Drive Interface:
Serial ATA/600
Controllers
Controller Type:
Serial ATA
Display & Graphics
Graphics Controller Manufacturer:
AMD
Graphics Controller Model:
Radeon HD 7660G
Graphics Memory Technology:
DDR3 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays:
1
Number of Internal 2.5" Bays:
1
Number of Total Expansion Slots:
1
Number of Mini PCI Express Slots:
1
Interfaces/Ports
HDMI:
Yes
DVI:
No
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
VGA:
No
DisplayPort:
Yes
Software
Operating System:
No
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Supply Wattage:
90 W
Physical Characteristics
Height:
1.9"
Width:
6.5"
Depth:
6.2"
Weight (Approximate):
2.46 lb
Miscellaneous
Package Contents:
  • Digital Engine DE6100 Desktop Computer
  • AC Adapter
Features:
Security Slot
Certifications & Standards:
  • FCC
  • CE
  • UL
  • CB
  • BSMI
  • CCC
  • ErP
Item Numbers
GTIN: 4717002343535
EAN: 4717002343535
UNSPSC: 43211507
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The AOPEN 91.DE800.A0B0 Products is also known as 91.DE800.A0B0
