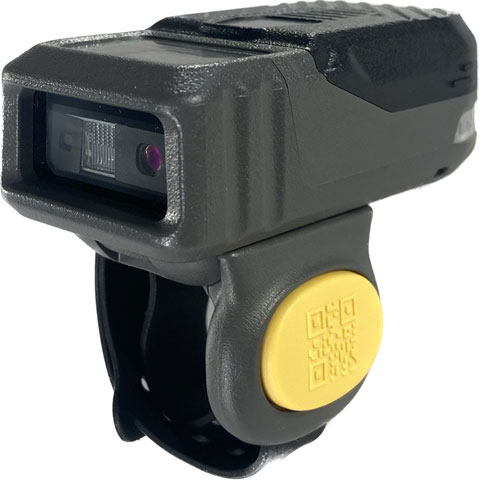

AML WSC Barcode Scanner
Lightweight Wearable Scanning Built for Industrial Productivity
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
AML WSC Barcode Scanner Options
-
AML WSC-1600 Barcode Scanner
Barcode Scanner, AML, Scanner, Ring, 2D ImagerItem on backorder — chat for lead time$598.66 -
AML WSC-2700 Barcode Scanner
Barcode Scanner, AML, Scanner, Ring, Near/Far 2D ImagerItem on backorder — chat for lead time$1,302.97
AML WSC Barcode Scanner Model Overview
The AML WSC wearable scanner series is designed to improve hands-free barcode scanning efficiency in demanding warehouse, manufacturing, and distribution environments. Lightweight models weigh less than 2.1 ounces and support multiple ergonomic mounting options, including index-finger and back-of-hand configurations for left- or right-hand use.
The WSC series combines high-performance 1D/2D barcode scanning, wireless connectivity, a swappable 600 mAh Li-Ion battery, and durable industrial construction for reliable all-day operation.
The WSC-1600 provides standard-range 1D/2D imaging from 2.2 inches to 19.5 inches, while the WSC-2700 expands scanning performance with near/far 2D barcode capture from 2.2 inches to more than 40 feet. Both models support HID Keyboard, SPP, and Bluetooth Low Energy profiles with wireless range up to 150 feet in unobstructed conditions. USB Type-C connectivity, visual and audible notifications, vibration feedback, and 5-foot drop resistance help support fast, accurate workflows while minimizing downtime.
Key features:
- Hands-Free Wearable Design: Supports finger mounting and optional back-of-hand configurations for left- or right-hand operation.
- Advanced 1D/2D Barcode Scanning: Captures barcodes in multiple orientations with illuminated aiming technology for fast, accurate scanning.
- Flexible Scan Ranges: WSC-1600 supports standard-range scanning from 2.2 inches to 19.5 inches, while WSC-2700 supports near/far scanning from 2.2 inches to 40+ feet.
- Reliable Wireless Connectivity: Supports HID Keyboard, and BLE profiles with range up to 150 feet without obstruction.
- Swappable Battery: Uses a 600 mAh Li-Ion battery designed to support full-shift operation for many applications.
- Industrial Durability: Built for harsh environments and rated to withstand 5-foot drops to concrete.
- Flexible Host Pairing: Can operate with compatible wireless host devices, including AML Android-based systems such as the Dragonfly wearable computer and Firebird VMU.
Specifications:
- Dimensions: WSC-1600: 2.55 in x 1.36 in x 1.03 in; WSC-2700: 2.76 in x 1.43 in x 1.12 in
- Weight: WSC-1600: 1.62 oz; WSC-2700: 2.08 oz
- Battery: 600 mAh swappable Li-Ion battery
- Charging: 5V, approximately 100-minute charging time
- USB Interface: USB Type-C
- Wireless Profiles: HID Keyboard, BLE
- Wireless Range: Up to 150 ft without obstruction
- Optical Resolution: WSC-1600: 1280 x 960 pixels; WSC-2700: 2688 x 1520 pixels
- Scan Range: WSC-1600: 2.2 in to 19.5 in; WSC-2700: 2.2 in to 40+ ft
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Drop Resistance: 5 ft drops to concrete
- Notifications: LED, beeper, and vibration
The AML WSC wearable scanner series is well suited for warehouse picking, packing, shipping, receiving, inventory control, distribution center operations, and other high-throughput barcode scanning applications where mobility, speed, and worker productivity are critical.
