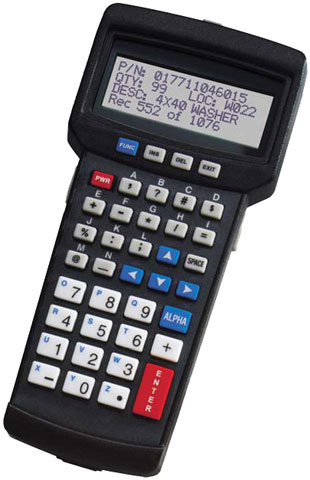

AML M5000-0000 Mobile Computer


(No reviews)

Be the first to

Write a Review
AML M5000 - Kit - No input device (DB9M connector for use with low-voltage undecoded scanners). Includes terminal, batteries, manual, serial cable, Application software, & Softcom software.
Portable Data Collection - Just add a Scanner

Versatile and easy to use, the AML M5000 portable batch terminal allows you to select the most suitable input device for your application, whether it's a wand, CCD, or laser scanner. Add any barcode scanner to achieve true portable data collection. Additionally, the M5000 functions as either a portable terminal or an in-line Keyboard wedge (non-portable) for dual functionality. Once your data has been collected, you can send the data to the PC either as an ASCII file via the serial port, or you can use SoftCom to convert it to keyboard data directly into your application. The M5000 can also connect directly with a modem for remote data transfer.

Technical Information

  • Operating System: Windows Compatible
  • Processor: 16.67MHz
  • Data Collection Type: Batch

General Information

  • Manufacturer: AML
  • Product Name: M5000 Portable Data Terminal

Physical Characteristics

  • Display: - 4 Lines x 20 Characters - LCD
  • Keyboard: 39 Key Alphanumeric Integrated
  • Battery Type: Alkaline - Included
  • Dimensions: 1.3" (33mm) x 3.5" (89mm) x 8" (203mm)
  • Weight: 10.2 oz - Excluding Batteries

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Drop Spec: 3' To Concrete


  • RAM Memory: 256KB
  • Expandable Memory: 1.2MB
  • EPROM Memory: 2MB


  • Additional Information: Interface: RS232
  • Package Contents: M5000 Portable Data Terminal 3 x AA Batteries User's CD Serial Cable Application Software SoftCom Software

Agency Approvals

  • Agency Approvals: FCC CE


  • Manufacturer Warranty: 2 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand AML
Model M5000
RAM Memory 256 KB
Operating System Proprietary
Scanner Type No Scanner
Data Collection Type Batch
