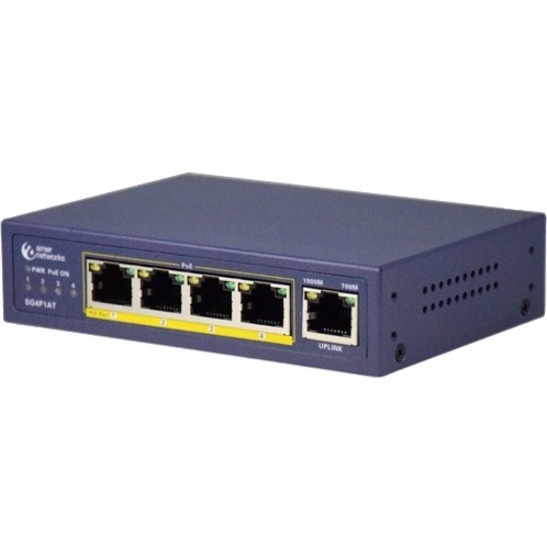

Amer Networks SG4P1AT Data Networking

Amer Networks - Amer 5 Gigabit Desktop Switch with 4 x PoE 802.3at Plus 1 x GIG Uplink, 5 Ports, Gigabit Ethernet, 10/100/1000Base-T, 2 Layer Supported, Twisted Pair, Desktop, Wall Mountable, Under Table, 3 Year Limited Warranty

Unmanaged desktop switch with 4 x 10/100/1000 PoE 802.3at and 1xGIG Uplink
Up to 25.5W per PoE port; power budget 96W
Compliant with IEEE802.3, 802.3i, 802.3u, 802.3x, 802.3ab/z, 802.3af/at
Flow control; half-duplex back pressure and full-duplex
Metal casing

Need a different version? See all Amer Networks Parts Security Cameras

$82.48

Chat Now for Qty Discount

Add to Quote

Overview

Amer Networks Parts Security Camera Model Overview

Parts and products from Amer Networks.

Amer Networks SG4P1AT Data Networking Overview

Designed for use with Power over Ethernet (PoE) devices, the SG4P1AT switch provides up to 25.5W of power to 802.3at PoE compatible devices connected to the switch's PoE ports. The Switch allows these devices to draw power from the switch and remove the need for a power adapter. Some devices that may have support for 802.3at are Wireless Access Points, IP Phones and IP Cameras. The Switch's ports automatically negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex modes, so any port can connect to a Fast Ethernet or Ethernet network. The ports also support Auto MDIX, allowing the automatic detection of a straight through or cross-over cable, this feature reduces support problems commonly caused by incorrect cable usage.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Uplink Port:

Yes

Modular:

Stack Port:

Port/Expansion Slot Details:

4 x Gigabit Ethernet Network
1 x Gigabit Ethernet Uplink

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Power Description

Power Source:

AC Adapter

Physical Characteristics

Product Color:

Blue

Form Factor:

Desktop
Wall Mountable
Under Table

Height:

1.1"

Width:

3.4"

Depth:

4.7"

Weight (Approximate):

10.88 oz

Miscellaneous

Package Contents:

5 Gigabit Desktop Switch with 4 x PoE 802.3at Plus 1 x GIG Uplink
Wall Mounting Kit

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0650177200491

UPC: 650177200491

EAN: 0650177200491

UNSPSC: 43222612
