Features:
Fanless

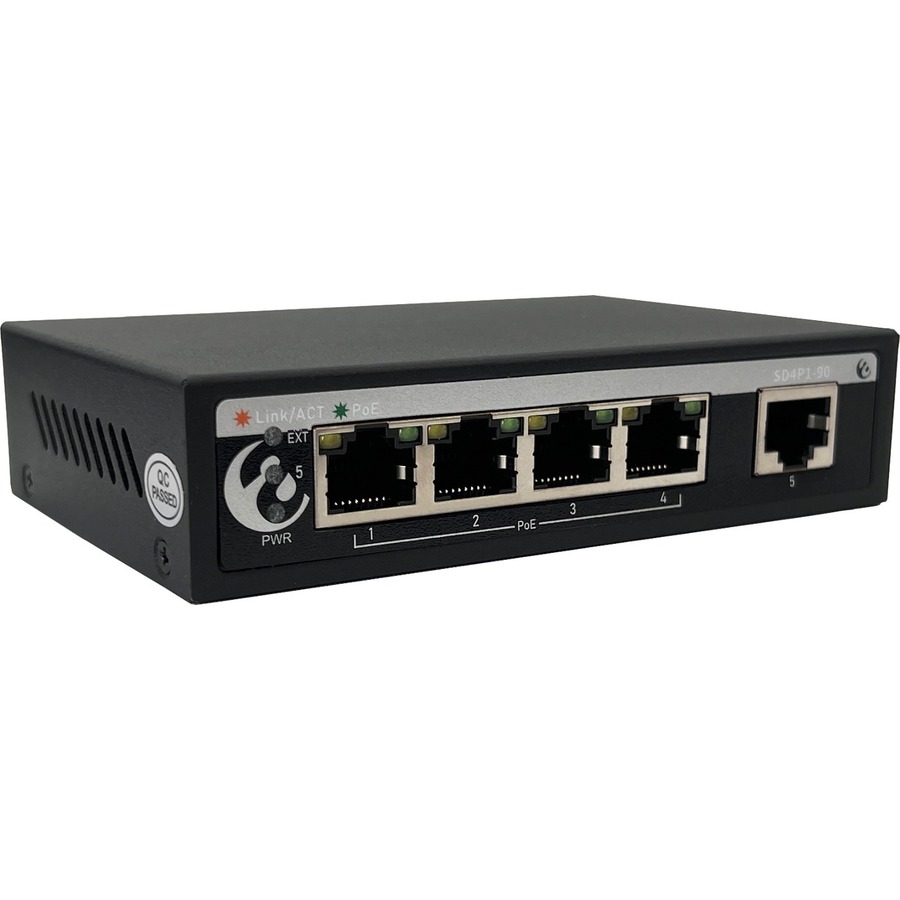

Amer Networks SD4P1-90 Data Networking
Part Number:
SD4P1-90
Model:
Parts
Amer Networks Parts Security Camera Model Overview
Parts and products from Amer Networks.
Amer Networks SD4P1-90 Data Networking Overview
- Ports: Provide 4*10/100Mbps PoE ports and 1 *100Mbps Uplink
- PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant
- Total Power: Total power budget of 96W and 30W for all singe PoE ports
- Self-adaption: RJ45 port supports 10/100Mbps Auto MDI/MDIX
- Extend Mode: Extend PoE up to 250m on one single cable
- Wide Application: Designed for WiFi AP and IP Security camera.VoIP etc
- Surge Protection: Protect the device from lighting surges and others electrical hazards
- Considerate Design: Exquisite compact size with fanless design
- Easy to use: Plug and play, No configuration required
Versatile PoE Port
Featuring 4* 10/100Mbps PoE ports which support IEEE802.3af/at standard and 1* 100Mbps Uplink ports. The PoE switch provides a maximum power budget of 96W and 30W for single PoE ports
Flexible Extend Mode
With the extend mode, the PoE Switch is able to offer more flexible choices for long range transmission, extending the distance up to 250m
Surge Protection Design
Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
5
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 4 x Fast Ethernet PoE
- 1 x Fast Ethernet Uplink
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-T
Network & Communication
Layer Supported:
2
Networking Standards:
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3at
Management & Protocols
Manageable:
No
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
96 W
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
Power Supply
Physical Characteristics
Height:
1.1"
Width:
4.6"
Depth:
3.3"
Weight (Approximate):
1.87 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN:
0650177308876
UPC:
650177308876
EAN:
0650177308876
UNSPSC:
43222612
