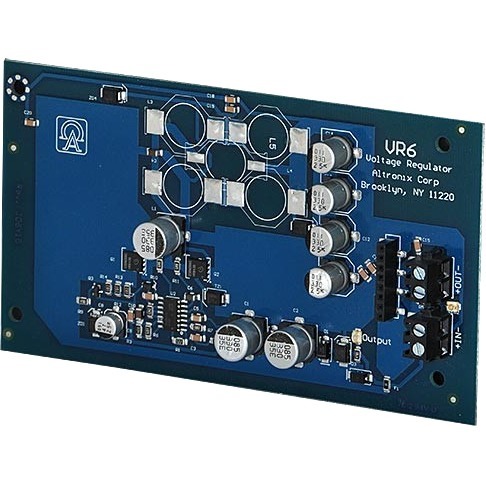

Altronix VR6 Power Device

Part Number: VR6
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$73.05
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Height
1"
Width
3"
Weight (Approximate)
6.40 oz
Additional Information
Power Input / Output Input: 24VDC @ 1.75A - Output: 5VDC @ 6A. Input: 24VDC @ 3.5A - Output: 12VDC @ 6A. Output 5VDC or 12VDC regulated output. Output rating 6A max. Surge suppression. LED Indicators Input and output LEDs. BTU/Hr (approx.): 5VDC: 15 BTU/Hr. 12VDC: 37 BTU/Hr.

Product Description:

  Altronix Voltage Regulator. 24VDC Input into 5VDC or 12VDC Output
Explore all Altronix Parts Accessories
Add to Quote
Altronix VR6 Power Device
Altronix VR6 Power Device

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix VR6 Power Device Overview
Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously.
Physical Characteristics
Height:
1"
Width:
3"
Weight (Approximate):
6.40 oz
Miscellaneous
Additional Information:
Power Input / Output
  • Input: 24VDC @ 1.75A - Output: 5VDC @ 6A.
  • Input: 24VDC @ 3.5A - Output: 12VDC @ 6A.
Output
  • 5VDC or 12VDC regulated output.
  • Output rating 6A max.
  • Surge suppression.
LED Indicators
  • Input and output LEDs.
BTU/Hr (approx.):
  • 5VDC: 15 BTU/Hr.
  • 12VDC: 37 BTU/Hr.
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 39121635
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix VR6 Power Device is also known as ALT-VR6
