Protection Type:
- Fuse
- Surge

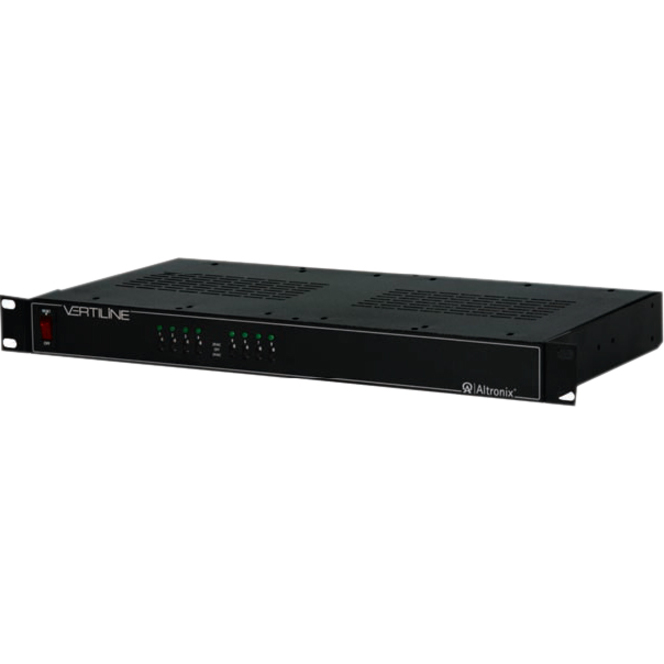

Altronix VERTILINE8C Power Device
Part Number:
VERTILINE8C
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix VERTILINE8C Power Device Overview
Altronix Vertiline CCTV Rack Mount Power Supplies provide 8 power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in sixteen (16) and twenty-four (24) output models with various power ratings.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 5 A
- 28 V AC @ 5 A
Input Current:
1.5 A @ 110V
Output Current:
5 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.6"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
7.85 lb
Miscellaneous
Package Contents:
- VERTILINE8Di Proprietary Power Supply
- Spare Fuses
Compatibility:
CCTV Systems
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239943241
UPC:
782239943241
EAN:
0782239943241
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix VERTILINE8C Power Device is also known as
ALT-VERTILINE8C
