Protection Type:
PTC
Altronix VERTILINE6D Power Device
Part Number:
VERTILINE6D
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix VERTILINE6D Power Device Overview

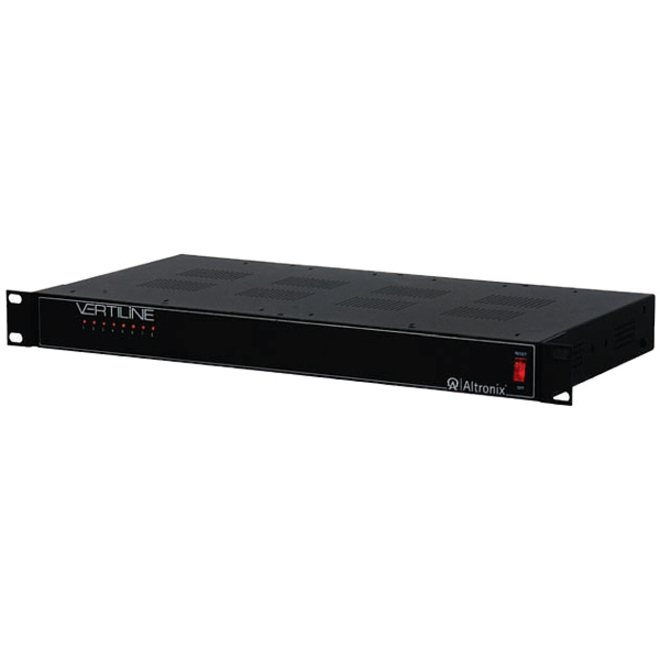

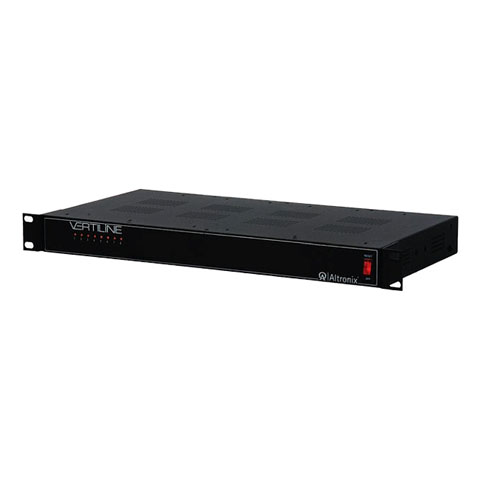

Altronix Vertiline6D Rack Mount Power Supplies provide eight (8) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. This unit is available with 24VDC power outputs. Vertiline Rack Mount Power Supplies are also available in sixteen (16) outputs.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 8 A
Input Current:
3 A @ 110V
Output Current:
8 A
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.6"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
9.30 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239946600, 4703876600058
UPC:
782239946600
EAN:
0782239946600, 4703876600058
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix VERTILINE6D Power Device is also known as
ALT-VERTILINE6D
