Altronix VERTILINE3D Power Device

Part Number: VERTILINE3D
Model: ALTV2416
$535.97
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of +12V Rails
8
Input Voltage Type
AC
Input Voltage
110 V AC
Output Voltage
12 V DC

Product Description:

  Altronix VERTILINE3D Proprietary Power Supply - Rack-mountable - 110 V AC Input - 8 +12V Rails

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix VERTILINE3D Power Device Overview

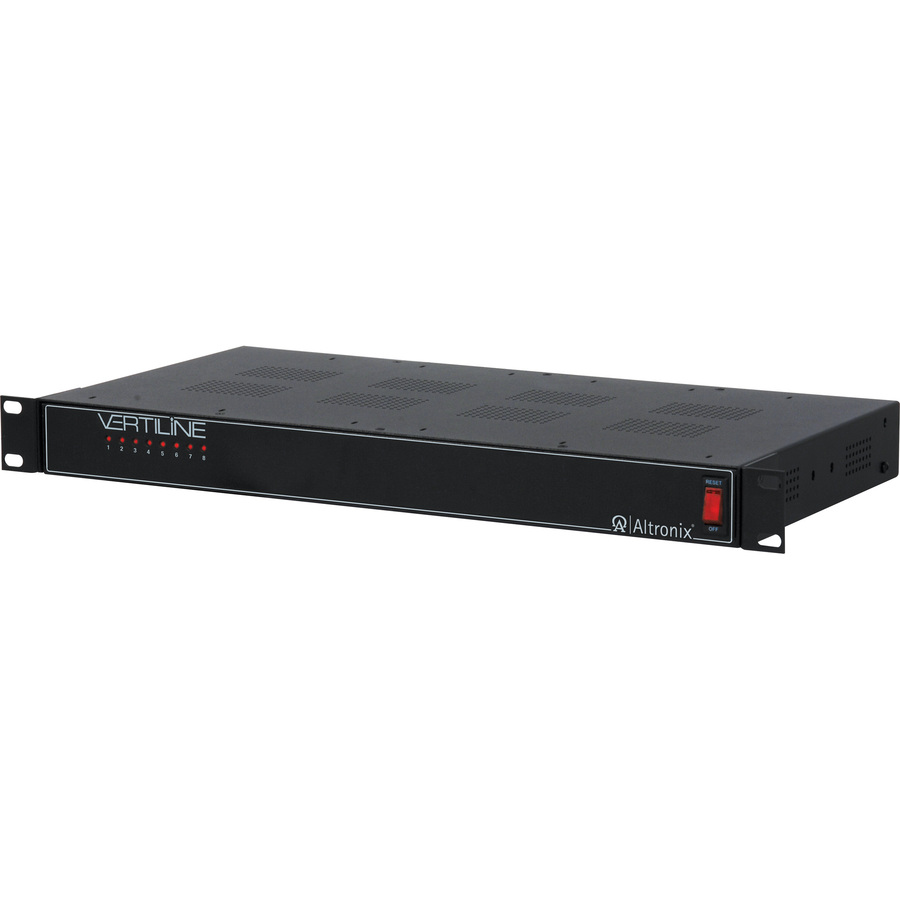

Vertiline3D provides eight (8) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in sixteen (16) outputs.

Power Description
Number of +12V Rails:
8
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC
Output Voltage Detail:
12 V DC @ 8 A
Input Current:
1.5 A @ 110V
Output Current:
8 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.6"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
8.05 lb
Miscellaneous
Package Contents:
  • VERTILINE3D Proprietary Power Supply
  • Mounting Hardware
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239946303
UPC: 782239946303
EAN: 0782239946303
UNSPSC: 39121004
