Protection Type:
- Fuse
- Surge
Altronix VERTILINE166C Power Device
Part Number:
VERTILINE166C
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

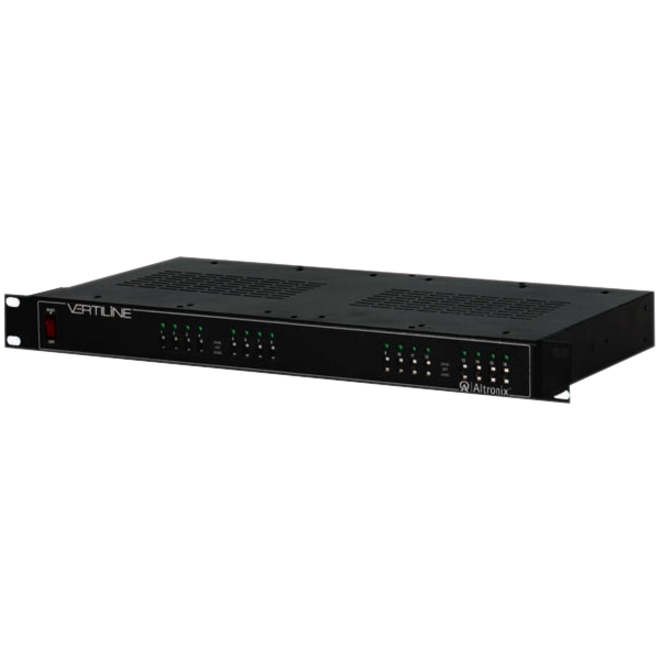

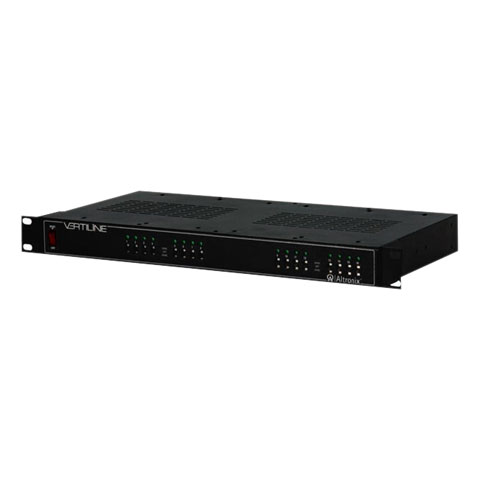

Altronix VERTILINE166C Power Device Overview
Altronix Vertiline CCTV Rack Mount Power Supplies provide 16 power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and twenty-four (24) output models with various power ratings.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 14 A
- 28 V AC @ 14 A
Input Current:
4 A @ 110V
Output Current:
14 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.6"
Width:
19.1"
Depth:
8.5"
Miscellaneous
Package Contents:
- VERTILINE166C Proprietary Power Supply
- Spare Fuses
Compatibility:
CCTV Systems
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239944828
UPC:
782239944828
EAN:
0782239944828
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix VERTILINE166C Power Device is also known as
ALT-VERTILINE166C
