Modular:
Yes
Altronix VB6 Accessory
Part Number:
VB6
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix VB6 Accessory Overview

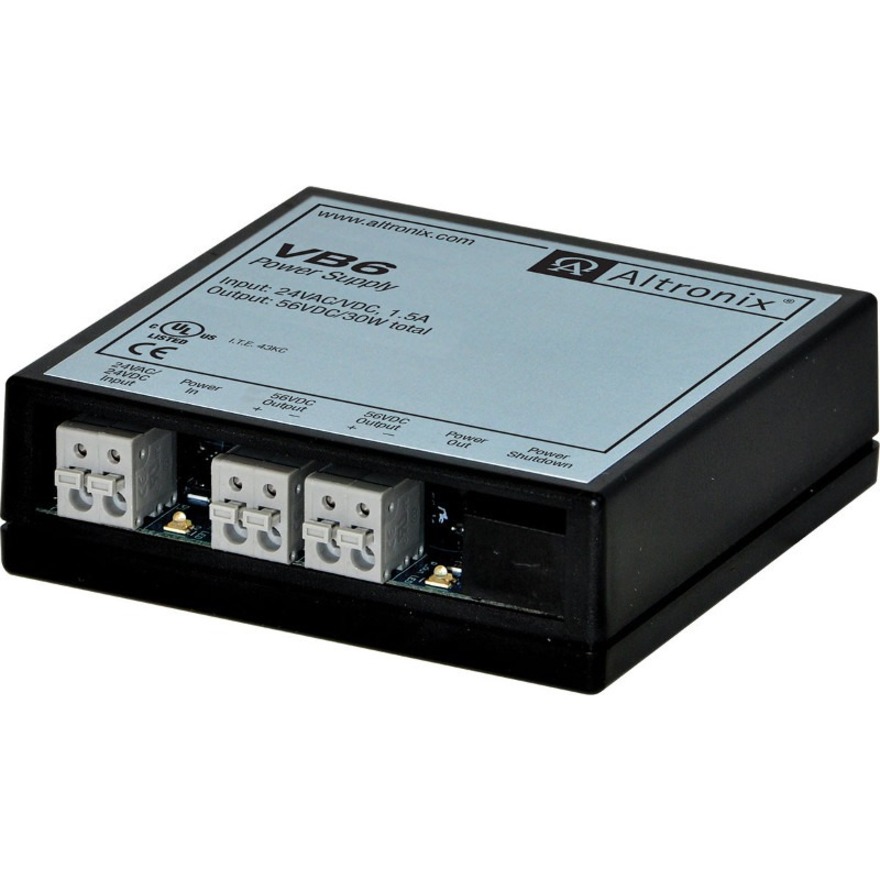

Altronix VB6 is a cost-effective 56VDC/30W UL Listed limited power supply. It is intended to power PoE related products such as the CAT5 to Coax cable Managed Ethernet Midspan receiver eBridge4PCRX and the transceiver with integral managed PoE/PoE+ switch eBridge4SK. VB6 provides two sets of output terminals to facilitate connection for up to two devices. It is powered by a 24VDC/24VAC Class 2 rated transformer/power supply.
Technical Information
Power Description
Input Voltage:
- 24 V AC
- 24 V DC
Output Voltage:
56 V DC
Output Power:
30 W
Physical Characteristics
Form Factor:
Case
Height:
1"
Width:
3.5"
Depth:
3.5"
Weight (Approximate):
4 oz
Miscellaneous
Compatibility:
- Altronix eBridge4PCRX Receiver
- Altronix eBridge4SK Transceiver
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239952977
UPC:
782239952977
EAN:
0782239952977
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix VB6 Accessory is also known as
ALT-VB6
