Product Material:
Galvanized Steel
Dimensions:
30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D)
Weight (Approximate):
Product Weight: 85.6 Lbs. (38.83 kg)
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T3MK77F16D Accessory Overview

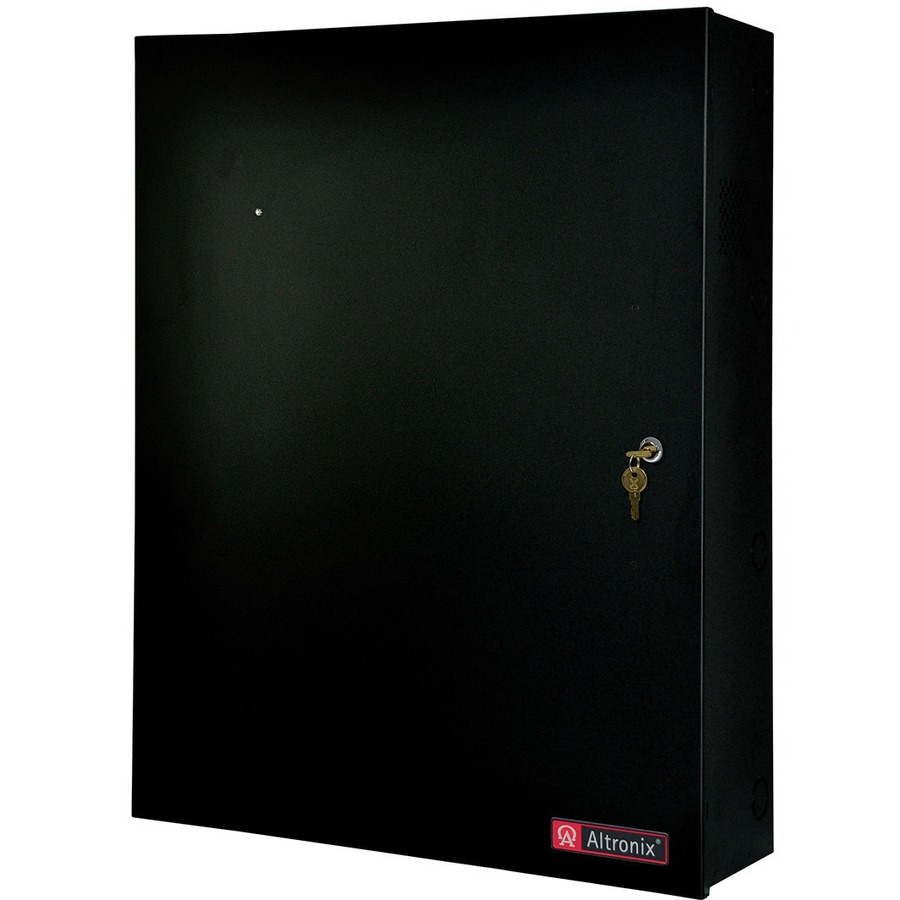

Altronix T3MK77F16D kit consists of Trove3 enclosure and TM3 Altronix & Mercury backplane with two 24VDC @ 10A power supply/chargers, two eight (8) PTC protected output access control modules and two eight (8) PTC protected output power distribution modules. This kit also accommodates various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Physical Characteristics
Miscellaneous
Package Contents:
- 1 x Trove3 - Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
- 2 x eFlow104NB - Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
- 2 x ACM8CB - Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
- 2 x PD8ULCB - Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
- 1 x RSB2 - Dual Power ON/OFF Rocker Switches with Mounting Bracket
- 1 x TM3 - Trove3 Backplane for Altronix & Mercury
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC:
31162800
