Recommended Usage:
Door
Altronix T3M77XK1 Power Device
Part Number:
T3M77XK1
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

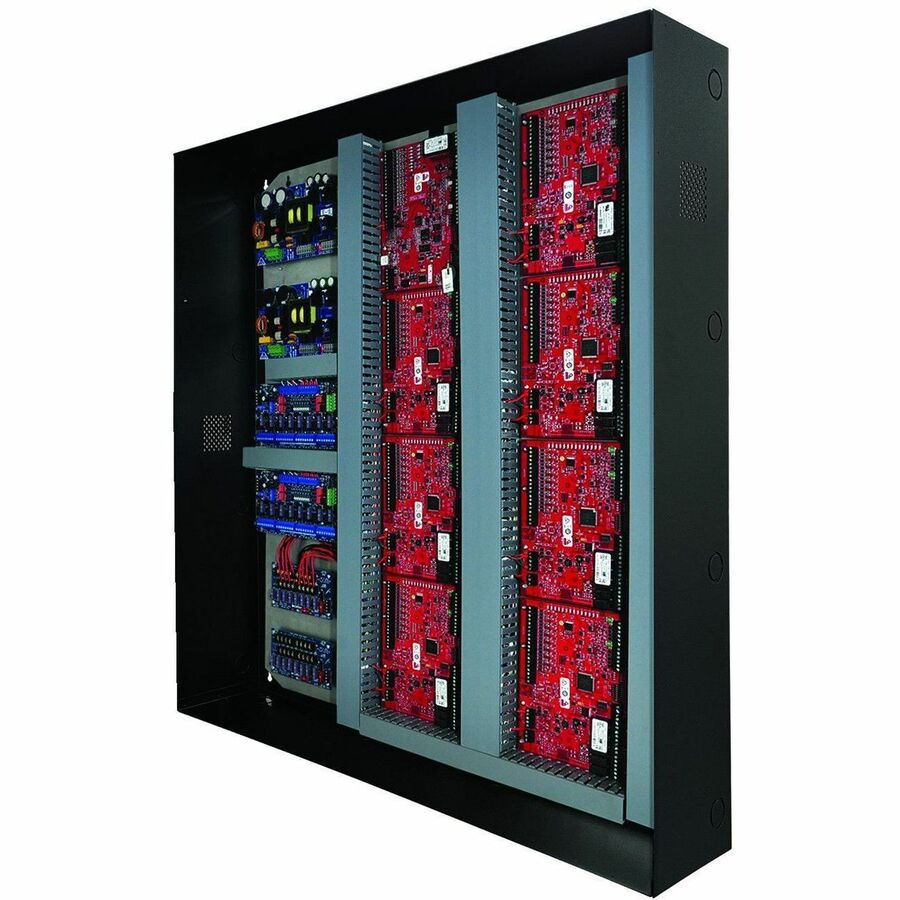

Altronix T3M77XK1 Power Device Overview
Altronix T3M77XK1 is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77XK1 accommodates one (1) Intelligent Dual Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Technical Information
Battery Information
Number of Batteries Supported:
4
Battery Capacity:
12000 mAh
Battery Voltage:
12 V DC
Power Description
Power Source:
DC
Input Voltage:
120 V AC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120°F (48.9°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Maximum Relative Humidity (Non-condensing):
85%
Physical Characteristics
Dimensions:
Dimensions: 30.12"Wx36.12"Hx7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
Weight (Approximate):
Weights (approximate): Product Weight:85.6 Lbs.(38.83 kg).
Miscellaneous
Package Contents:
- 1 x Trove3
- 1 x TM3
- 2 x eFlow104NB
- 2 x ACMS8
- 2 x VR6
- 2 x PDS8
- 1 x RSB2
- 1 x Intelligent Dual Reader Controller
- 7 x Dual Reader Interface Modules
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T3M77XK1 Power Device is also known as
ALT-T3M77XK1
