Altronix T3M77LXK3D Power Device

Part Number: T3M77LXK3D

Model: Parts

$3,916.32

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Usage

Door

Number of Batteries Supported

Input Voltage

115 V AC24 V DC12 V DC

Minimum Operating Temperature

32°F (0°C)

Product Description:

Power Systems & Supplies, Altronix, Trove3M3 - two (2) AL1024ULXB2 (10A@24VDC) power supplies, 2 - ACMS8CB - 8 PTC Dual Input/output Access Power Controller, 2 - PDS8CB - Power PTC Distribution Module. Rocker switch bracket with RSB2, (2) tamper switches, two (2) BL6, two (2) BL4, pre-wired with finger duct for eight (8) LNL-1320/MR52 and mounting hardware.

Explore all Altronix Parts Accessories

Add to Quote

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix T3M77LXK3D Power Device Overview

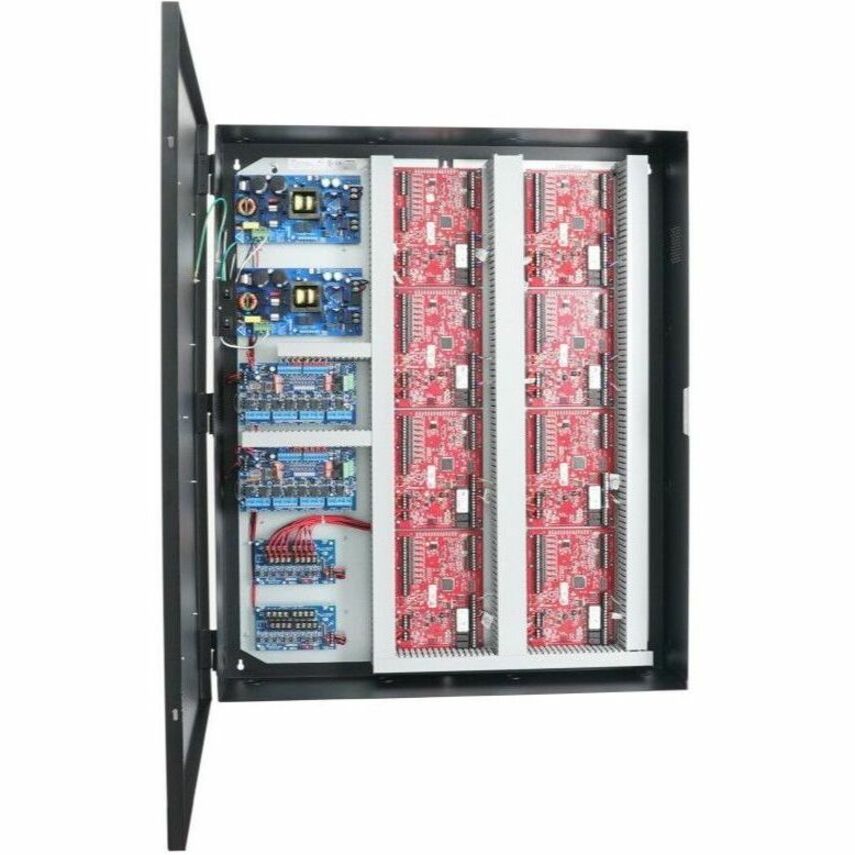

Altronix T3M77LXK3D is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77LXK3D accommodates up to eight (8) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

Also compatible with these authentic Mercury partners:

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.

Detailed Specs

Technical Information

Recommended Usage:

Door

Battery Information

Number of Batteries Supported:

Power Description

Input Voltage:

115 V AC
24 V DC
12 V DC

Environmental Conditions

Minimum Operating Temperature:

32°F (0°C)

Maximum Operating Temperature:

120.2°F (49°C)

Minimum Storage Temperature:

-4°F (-20°C)

Maximum Storage Temperature:

158°F (70°C)

Maximum Relative Humidity (Non-condensing):

85%

Physical Characteristics

Dimensions:

30.12"Wx36.12"Hx7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).

Weight (Approximate):

85.6 Lbs. (38.83 kg).

Miscellaneous

Package Contents:

1 x Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
1 x Trove3 Backplane for Altronix & Mercury
2 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
2 x Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
2 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
2 x Dual Input Power Distribution Module, 8 PTC Outputs

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 31162800
