Altronix T3M77LXK1 Power Device
Part Number:
T3M77LXK1
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

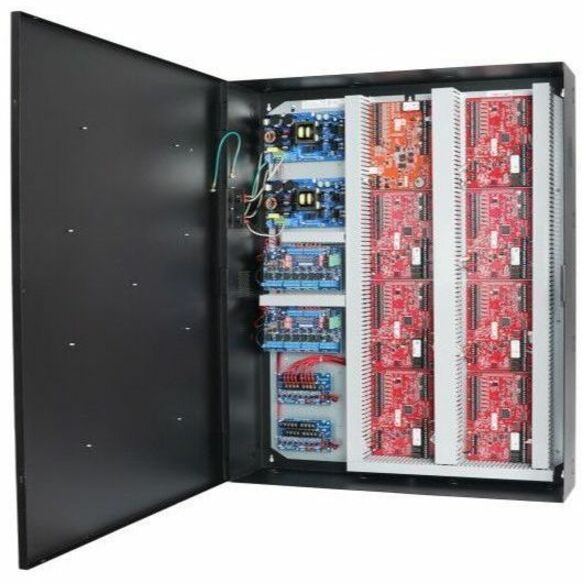

Altronix T3M77LXK1 Power Device Overview
Altronix T3M77LXK1D is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77LXK1D accommodates up to one (1) Intelligent Dual Reader Controller and (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.
Technical Information
Battery Information
Number of Batteries Supported:
4
Power Description
Input Voltage:
- 115 V AC
- 24 V DC
- 12 V DC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Maximum Relative Humidity (Non-condensing):
85%
Physical Characteristics
Dimensions:
- 30.12"Wx36.12"Hx7.06"D(768.1 mm W x 917.5 mm H x 179.3 mm D).
Weight (Approximate):
- 85.6 Lbs.(38.83 kg)
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
- 1 x Trove3 Backplane for Altronix & Mercury
- 2 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- 2 x Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
- 2 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 2 x Dual Input Power Distribution Module, 8 PTC Outputs
- Dual Power ON/OFF Rocker Switches with Mounting Bracket
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
