Recommended Usage:
- Door
- Wall Mount Enclosure
Altronix T2ZK7F16 Accessory
Part Number:
T2ZK7F16
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2ZK7F16 Accessory Overview

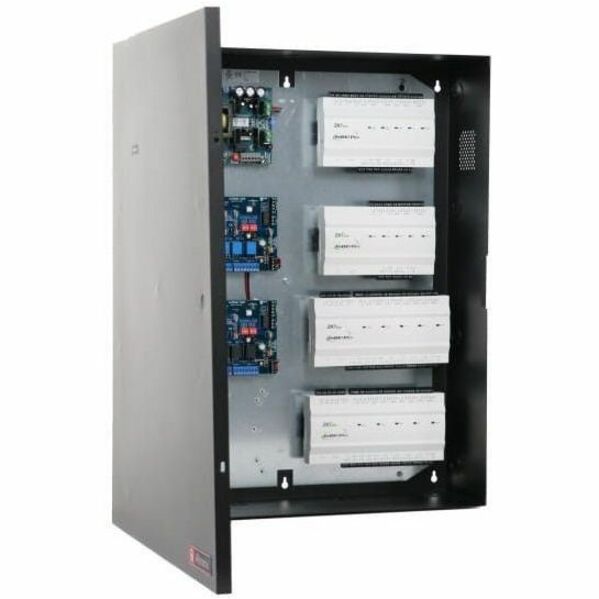

Altronix T2ZK7F16 kit consists of Trove2 enclosure, TZ2 ZKTeco/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, two (2) fused access power controllers, one (1) voltage regulator and one (1) dual input fused power distribution module.
This kit also accommodates up to four (4) ZKTeco modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Technical Information
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Physical Characteristics
Dimensions:
- 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Weight (Approximate):
- 54.7 Lbs.(24.8 kg).
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 2 x Access Power Controller, 8 Fused Relay Outputs, FAI, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 Fused Outputs
- 1 x Trove2 Backplane for Altronix/ZK-Teco
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121000
Get help from a Barcoding Expert!
The Altronix T2ZK7F16 Accessory is also known as
ALT-T2ZK7F16
