Recommended Usage:
- Door
- Wall Mount Enclosure
Altronix T2SSK7514 Power Device
Part Number:
T2SSK7514
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2SSK7514 Power Device Overview

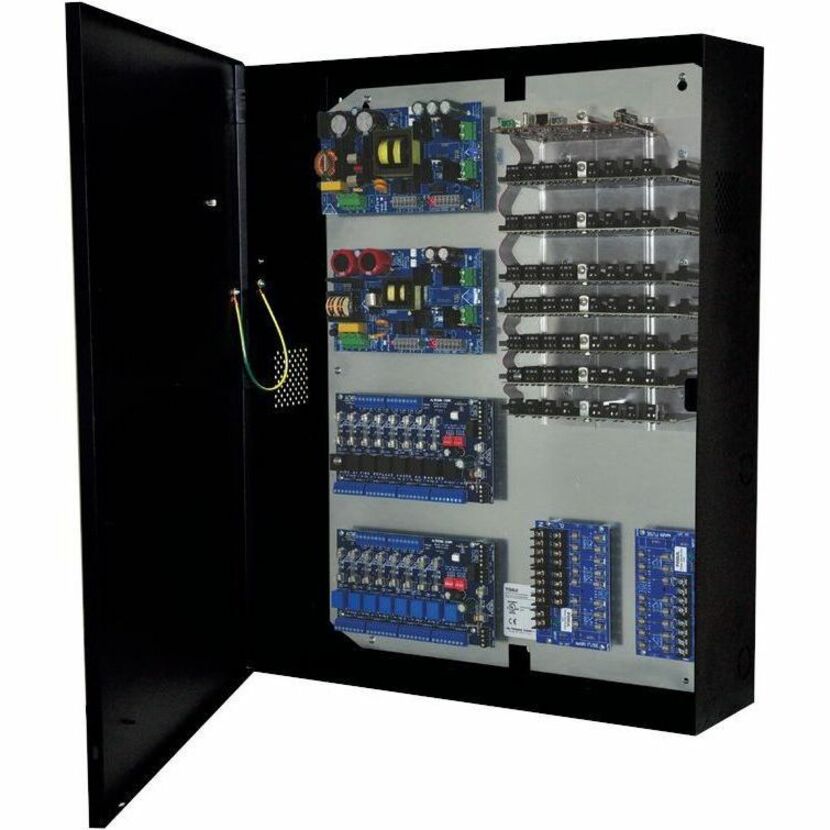

Altronix T2SSK7514D kit consists of Trove2 enclosure, TSS2 Lenel-S2 (S2 Security Platform)/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, two (2) PTC access power controllers and two (2) PTC power distribution modules. This kit also accommodates S2-INST Installation Kit For Lenel-S2 (S2 Security Platform) S2 Network Node for up to fourteen (14) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Technical Information
Battery Information
Number of Batteries Supported:
4
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120°F (48.9°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Physical Characteristics
Dimensions:
Dimensions: 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Weight (Approximate):
Product Weight: 49 Lbs.(22.23 kg).
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x Trove2 Backplane for Altronix/S2
- 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- 1 x Power Supply Charger, 12VDC @ 10A, Board
- 2 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
- 2 x Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
- 1 x Dual Power ON/OFF Rocker Switches with Mounting Bracket
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239970131
UPC:
782239970131
EAN:
0782239970131
UNSPSC:
39121000
Get help from a Barcoding Expert!
The Altronix T2SSK7514 Power Device is also known as
ALT-T2SSK7514
or T2SSK7514.
