Product Material:
Galvanized Steel
Dimensions:
27.25"W x 21.75"L x 6.5"H (692.15 mm W x 546.1 mm L x 165.1 mm H)
Weight (Approximate):
Product Weight: 40 Lbs. (18.15 kg)
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2MK3F8Q Security System Products Overview

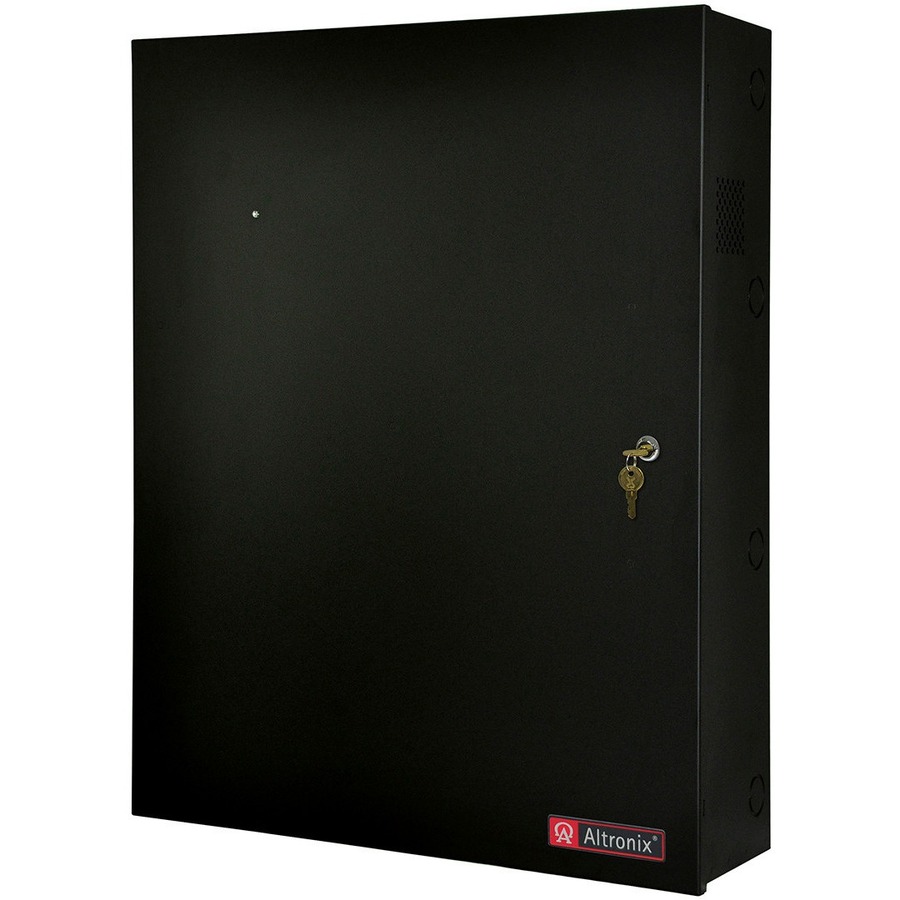

Altronix T2MK3F8Q kit consists of Trove2 enclosure and TM2 Altronix & Mercury/LenelS2 backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, Network communication module, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and eight (8) fuse protected output access control module. This kit also accommodates various combinations of Mercury/LenelS2 boards for up to eight (8) doors in a single enclosure. Trove simpli-fies board layout and wire management, reduces installation time and labor costs.
Physical Characteristics
Miscellaneous
Package Contents:
- 1 x Trove2 - Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x eFlow6NB - Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
- 1 x ACM8 - Access Power Controller, 8 Fused Relay Outputs, FAI, Board
- 1 x VR6 - Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x PDS8 - Dual Input Power Distribution Module, 8 Fused Outputs
- 1 x TM2 -Trove2 Backplane for Altronix & Mercury
- 1 x LINQ2 - Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
NDAA Compliant:
Yes
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T2MK3F8Q Security System Products is also known as
ALT-T2MK3F8Q
