Recommended Usage:
Door
Altronix T2MK3F4Q Security System Products
Part Number:
T2MK3F4Q
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2MK3F4Q Security System Products Overview

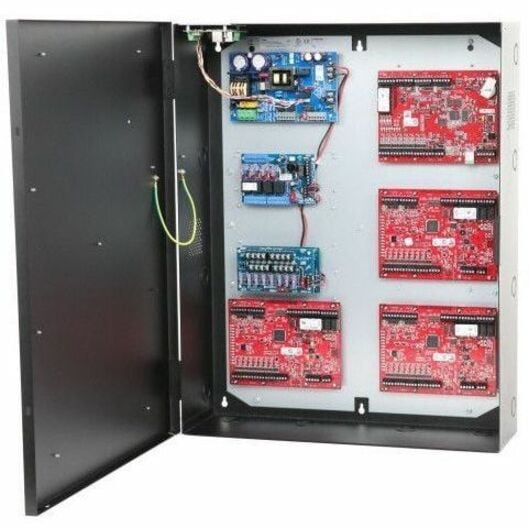

Altronix T2MK3F4Q kit consists of Trove2 enclosure and TM2 Mercury/Altronix backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, Network communication module, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and four (4) fuse protected output access control module. This kit also accommodate various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Technical Information
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
122°F (50°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Maximum Relative Humidity (Non-condensing):
85%
Physical Characteristics
Material Details:
Backplane:
- 16 AWG galvanized steel
Dimensions:
Dimensions (approximate):
- 27.25"Wx21.75"Lx6.5"H(692.15 mm W x 546.1 mm L x 165.1 mm H).
Weight (Approximate):
Product Weight:
- 39.6 Lbs.(18 kg)
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
- 1 x Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
- 1 x Access Power Controller, 4 Fused Relay Outputs, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 Fused Outputs
- 1 x Trove2 Backplane for Altronix & Mercury
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T2MK3F4Q Security System Products is also known as
ALT-T2MK3F4Q
