Altronix T2MK38D Power Device
Part Number:
T2MK38D
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

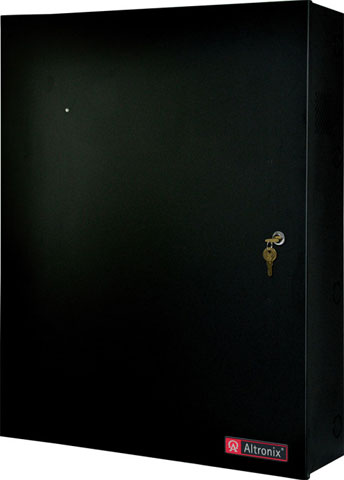

Altronix T2MK38D Power Device Overview
Altronix T2MK38D kit consists of Trove2 enclosure and TM2 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual voltage power distribution module and eight (8) PTC protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Technical Information
Battery Information
Battery Included:
No
Number of Batteries Supported:
4
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Product Material:
Galvanized Steel
Material Details:
galvanized steel - backplane
Dimensions:
Dimensions:
- 21.5"Wx27.25"Hx6.5"D(546.1 mm W x 692.15 mm H x 165.1 mm D).
Weight (Approximate):
Product Weight:
- 39.6 Lbs.(18 kg).
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x Trove2 Backplane for Altronix & Mercury
- 1 x Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 115VAC, Board
- 1 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 PTC Outputs
Compatibility:
Mercury Security:
- LP2500 - Controllers
- MUX8 - Controllers
- LP1502 - Controllers
- LP4502 - Controllers
- MR52 - Controllers
- MR16IN - Controllers
- MR16OUT - Controllers
- LP1501 - Controllers
- MR62e
- MR50
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T2MK38D Power Device is also known as
ALT-T2MK38D
or T2MK38D.
