Altronix T2M7LXK1 Power Device
Part Number:
T2M7LXK1
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

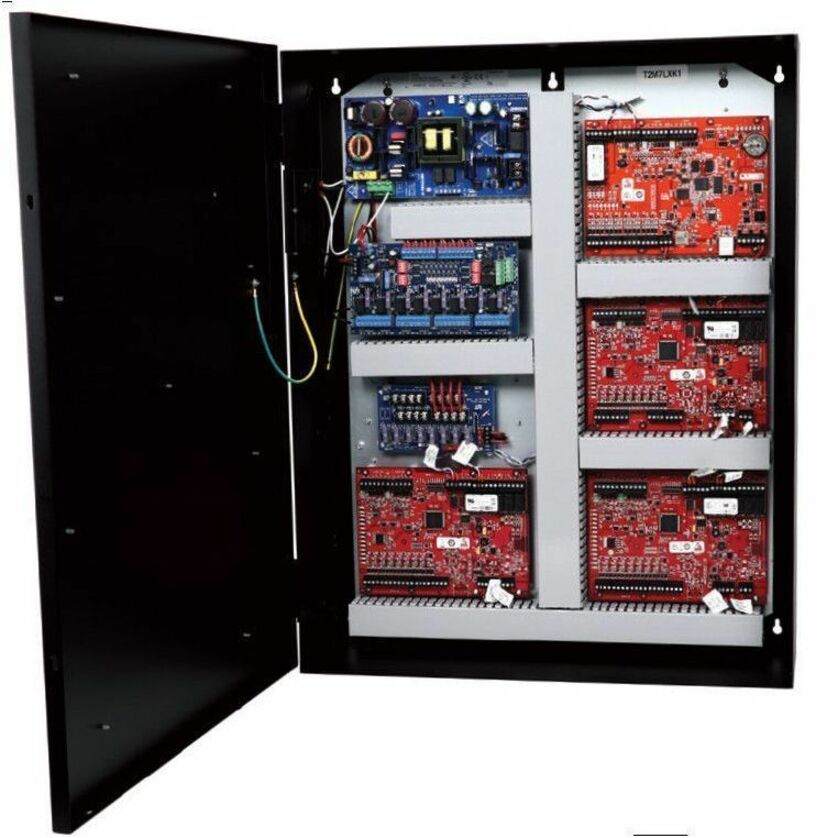

Altronix T2M7LXK1 Power Device Overview
Altronix T2M7LXK1D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK1D accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
Technical Information
Battery Information
Battery Included:
No
Number of Batteries Supported:
4
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Product Material:
Galvanized Steel
Material Details:
galvanized steel - backplane
Dimensions:
Dimensions:
- 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Weight (Approximate):
Product Weight:
- 41.6 Lbs.(18.87 kg).
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x Trove2 Backplane for Altronix & Mercury
- 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- 1 x Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 PTC Outputs
- 1 x Single Power ON/OFF Rocker Switch with Mounting Bracket
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
