Recommended Usage:
Door
Altronix T2KK38 Power Device
Part Number:
T2KK38
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

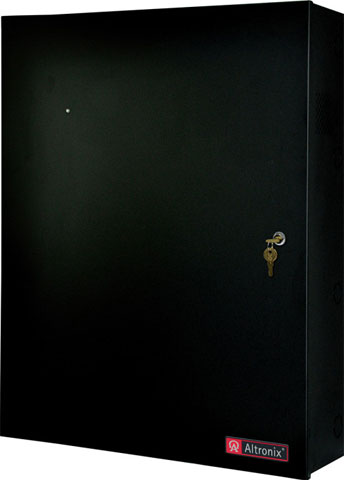

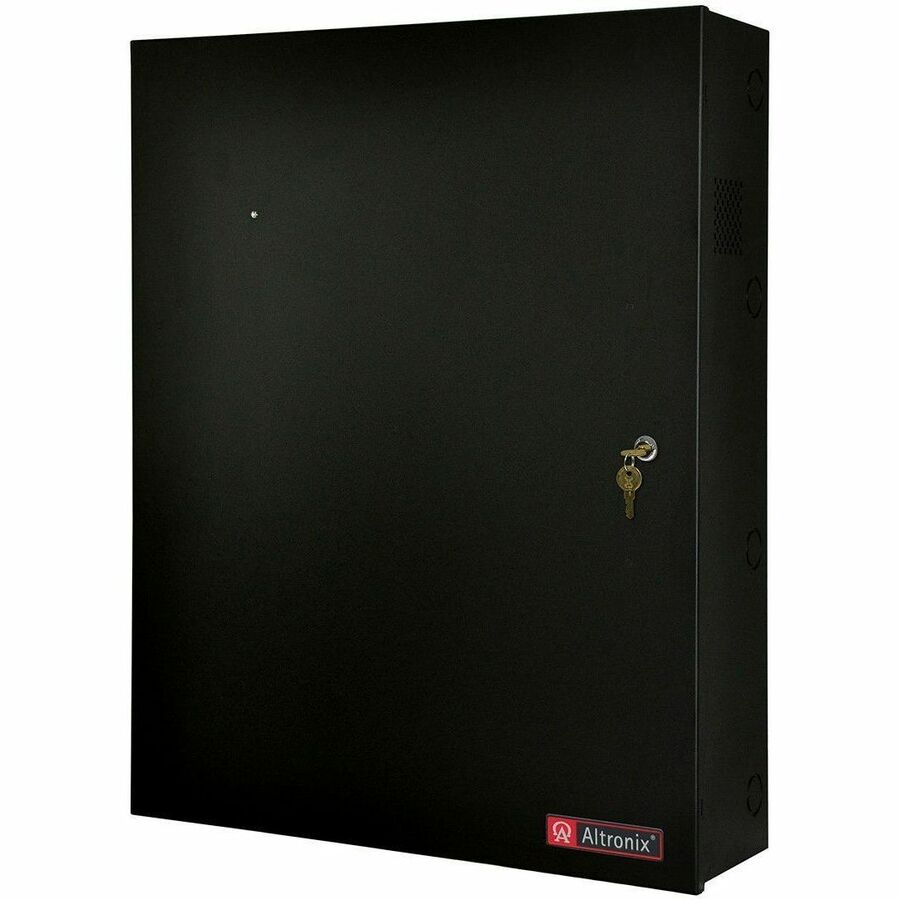

Altronix T2KK38 Power Device Overview
Altronix T2KK38D kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) PTC access power controller, and one (1) 16VAC transformer.
This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Technical Information
Battery Information
Battery Rechargeable:
Yes
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Maximum Relative Humidity (Non-condensing):
85%
Physical Characteristics
Material Details:
16 AWG Galvanized Steel Backplane
Dimensions:
Dimensions: 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D)
Weight (Approximate):
Product Weight: 40.9 Lbs (18.55 kg)
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure
- 1 x Trove2 Backplane
- 1 x Power Supply Charger
- 1 x Access Power Controller
- 1 x Open Frame Transformer
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239970438
UPC:
782239970438
EAN:
0782239970438
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T2KK38 Power Device is also known as
ALT-T2KK38
or T2KK38.
