Input Current:
1.50 A
Input Voltage:
- 220 V AC
- 24 V DC
Frequency:
- 50 Hz
- 60 Hz
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2KE3316V Power Device Overview

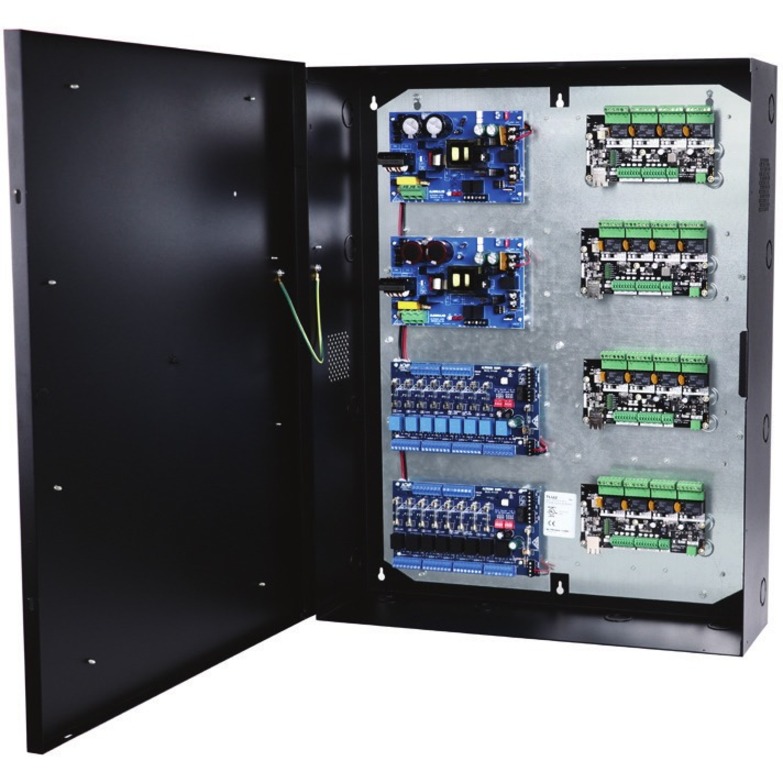

Altronix T2KE3316V kit consists of Trove2 enclosure, TLU2 Kisi/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two eight (8) fuse protected output access control modules. This kit also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Power Description
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
Enclosure - 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Weight (Approximate):
Enclosure - 54.7 Lbs. (24.8 kg).
Miscellaneous
Package Contents:
- 1 x Trove2 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 2 x AL600XB220 Power Supply Charger, 12/24VDC @ 6A, 220VAC, Board
- 2 x ACM8 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T2KE3316V Power Device is also known as
ALT-T2KE3316V
or T2KE3316V.
