Battery Included:
No
Altronix T2KE3316DV Power Device
Part Number:
T2KE3316DV
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2KE3316DV Power Device Overview

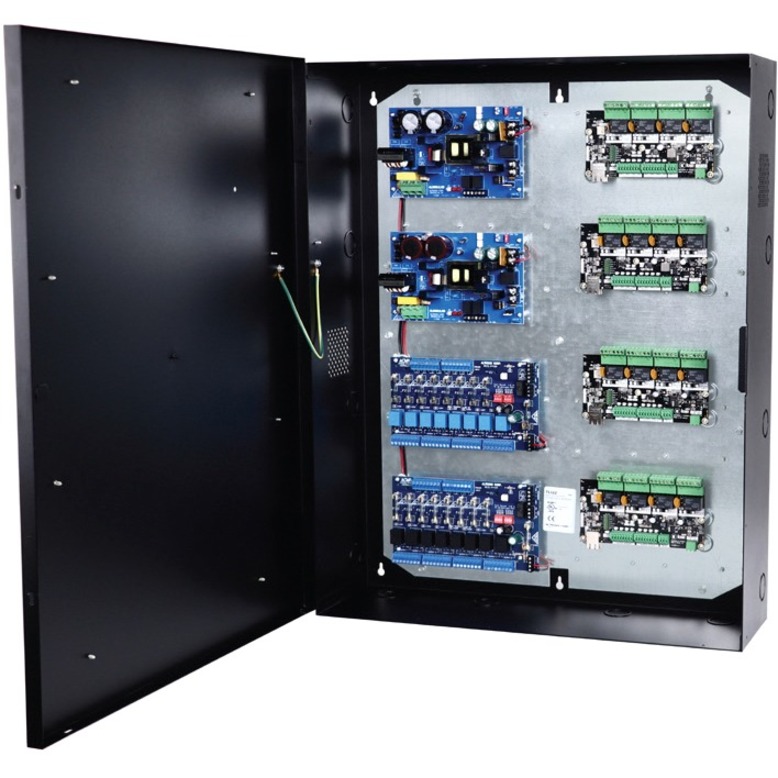

Altronix T2KE3316DV kit consists of Trove2 enclosure, TLU2 Kisi/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two eight (8) PTC protected output access control modules. This kit also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Battery Information
Power Description
Power Source:
Power Supply
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
- 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
Height:
27.3"
Width:
21.5"
Depth:
6.5"
Weight (Approximate):
- 54.7 Lbs. (24.8 kg).
Miscellaneous
Package Contents:
- 1 x Trove2 (Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane).
- 2 x AL600XB220 (Power Supply Charger, 12/24VDC @ 6A, 220VAC, Board).
- 2 x ACM8CB (Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board).
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T2KE3316DV Power Device is also known as
ALT-T2KE3316DV
or T2KE3316DV.
