Product Highlights

View All
Input Current
1.50 A
Input Voltage
220 V AC24 V DC
Frequency
50 Hz60 Hz
Maximum Operating Temperature
120.2°F (49°C)

Product Description:

  Power Systems & Supplies, Altronix, Trove2LU2 - Two (2) AL600ULXB (6A@12/24VDC) power supplies, Two (2) ACM8 - 8 Fused Output Access Power Controller. Includes: (20) MM1''s, Camera lock, tamper switch, battery leads and mounting hardware.
Explore all Altronix Parts Accessories
Add to Quote
Altronix T2KE3316 Power Device
Altronix T2KE3316 Power Device
Altronix T2KE3316 Power Device Altronix T2KE3316 Power Device

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix T2KE3316 Power Device Overview

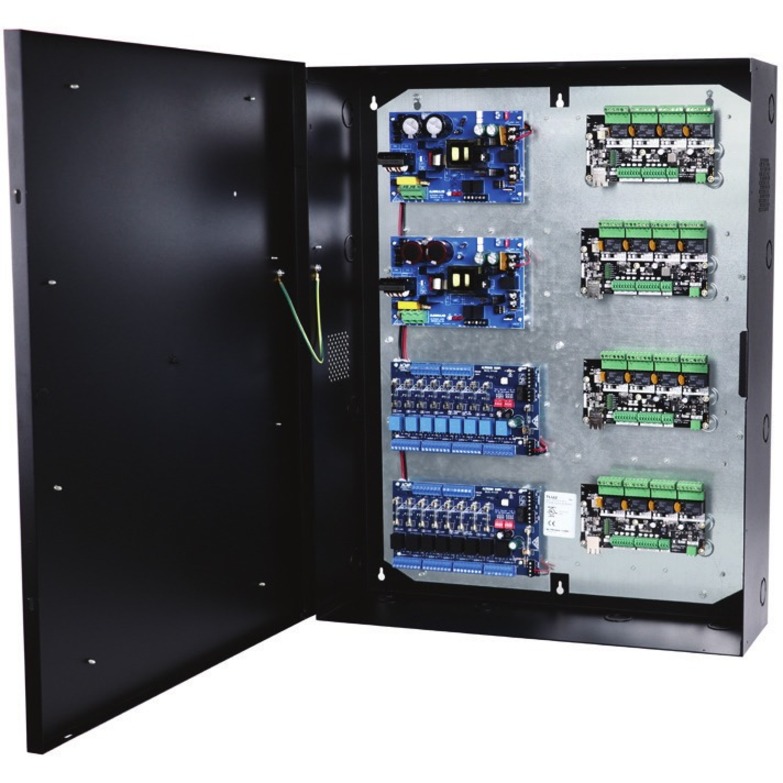

Altronix T2KE3316V kit consists of Trove2 enclosure, TLU2 Kisi/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two eight (8) fuse protected output access control modules. This kit also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Power Description
Input Current:
1.50 A
Input Voltage:
  • 220 V AC
  • 24 V DC
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
Enclosure - 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).

Weight (Approximate):
Enclosure - 54.7 Lbs. (24.8 kg).

Miscellaneous
Package Contents:
  • 1 x Trove2 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
  • 2 x AL600XB220 Power Supply Charger, 12/24VDC @ 6A, 220VAC, Board
  • 2 x ACM8 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 31162800
