Recommended Usage:
Door
Altronix T1RV3F4 Accessory
Part Number:
T1RV3F4
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T1RV3F4 Accessory Overview

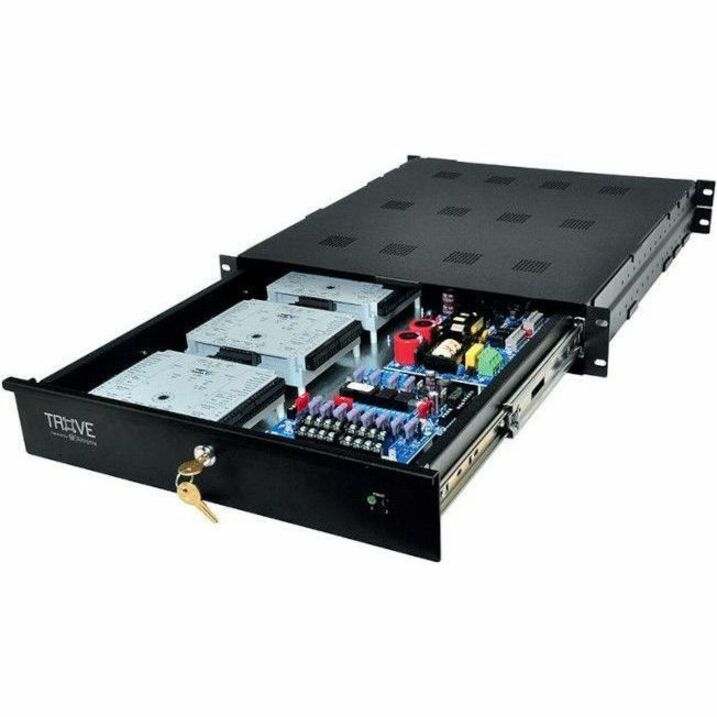

Altronix T1RV3F4 rack kit is pre-assembled and consists of Trove1V1R enclosure/backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of HID VertX boards for up to six (6) doors in a single enclosure.
Technical Information
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Physical Characteristics
Dimensions:
- Dimensions: 19"Wx3.25"Hx26.5"D(482.6 mm W x 82.6 mm H x 673.1 mm D).
- Rails extend to 36" (914.4mm).
Weight (Approximate):
- Product Weight: 20 Lbs.(9.07 kg).
Miscellaneous
Package Contents:
- 1 x Altronix/Mercury Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
- 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 Fused Outputs
- 1 x Access Power Controller, 4 Fused Relay Outputs, Board
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121000
Get help from a Barcoding Expert!
The Altronix T1RV3F4 Accessory is also known as
ALT-T1RV3F4
