Recommended Usage:
- Door
- Wall Mount
Altronix T1RM3F4 Accessory
Part Number:
T1RM3F4
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T1RM3F4 Accessory Overview

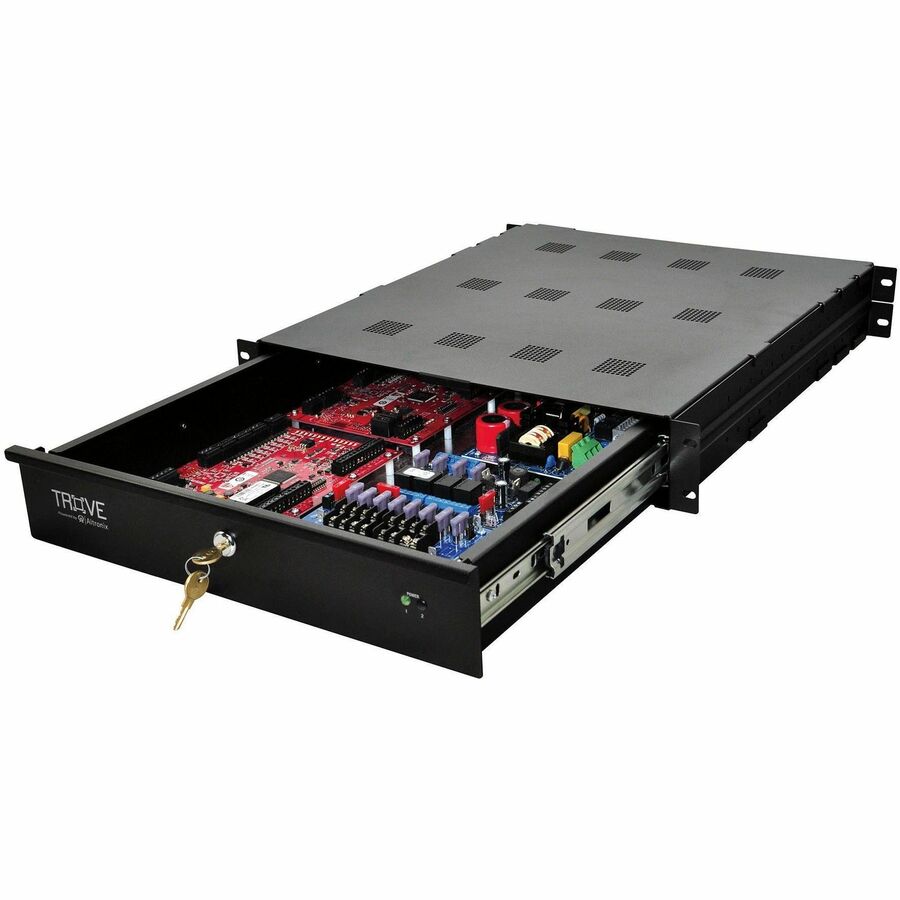

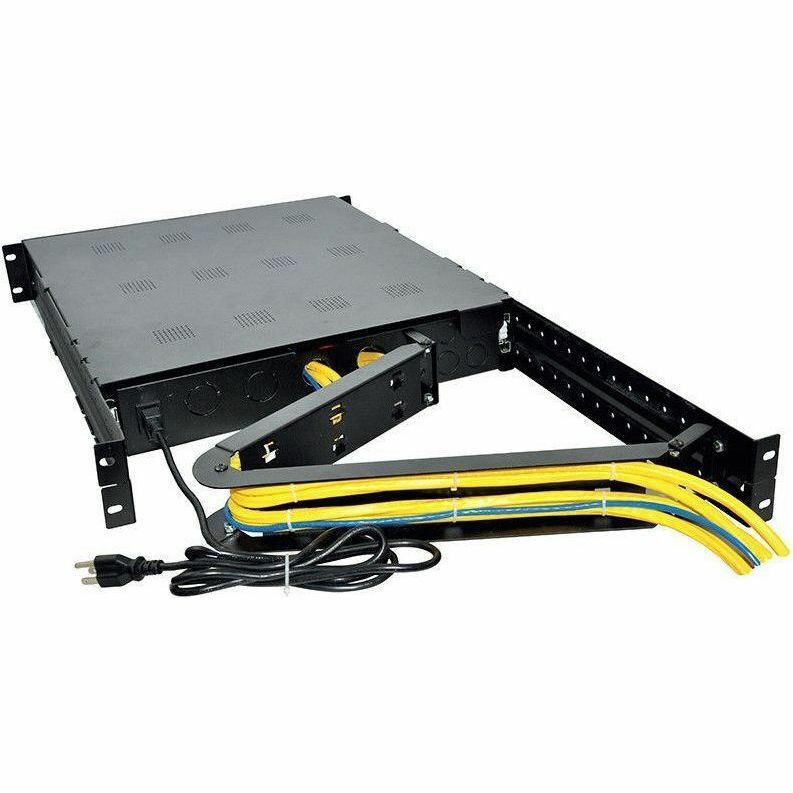

Altronix T1RM3F4V kit consists of Trove1R enclosure and TM1R Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) output fused dual output power distribution module and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs
Technical Information
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Physical Characteristics
Product Material:
Powder Coated Steel
Material Details:
Black Powder Coated Steel Enclosure
Dimensions:
Dimensions (H x W x D) Enclosure: 3.25" x 19.0" x 26.5" (82.6mm x 482.6mm x 673.1mm)
Weight (Approximate):
Product: 20 lb. (9.07 kg)
Miscellaneous
Package Contents:
- 1 x Altronix/Mercury Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
- 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 Fused Outputs
- 1 x Access Power Controller, 4 Fused Relay Outputs, Board
Compatibility:
Altronix Corporation:
- LP1502
- MR52
- MR16IN
- MR16OUT
- LP2500
- MUX8
- MR62e
- LP1501
- MR50
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121000
