Altronix T1PHK1F4SD Power Device
Part Number:
T1PHK1F4SD
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T1PHK1F4SD Power Device Overview

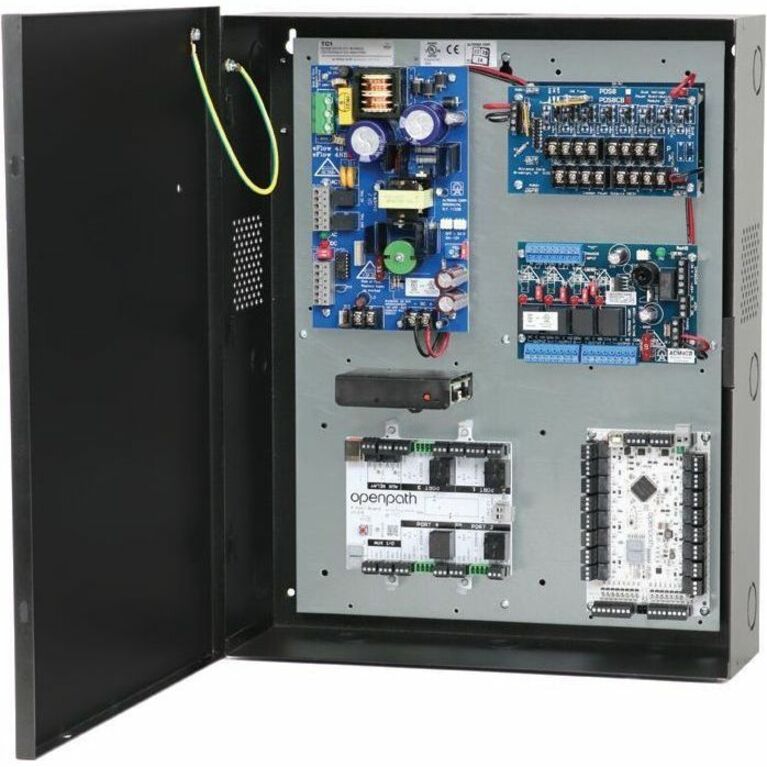

Altronix T1PHK3F4SD kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC or 24VDC @ 4A power supply/charger, one (1) PTC access power controller, one dual input power distribution module and one (1) voltage regulator. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Technical Information
Battery Information
Number of Batteries Supported:
2
Battery Capacity:
7000 mAh
Power Description
Power Source:
DC
Input Voltage:
- 12 V DC
- 24 V DC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120°F (48.9°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
158°F (70°C)
Maximum Relative Humidity (Non-condensing):
85%
Physical Characteristics
Dimensions:
Dimensions: 14.5"Wx18"Hx4.62"D(368.3 mm W x 457.2 mm H x 118 mm D).
Weight (Approximate):
Weights (approximate): Product Weight:15.5 Lbs.(7 kg).
Miscellaneous
Package Contents:
- 1 x Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
- 1 x Power Supply Charger, Single Output, 12/24VDC @ 4A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
- 1 x Access Power Controller, 4 PTC Class 2 Relay Outputs, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 PTC Outputs
- 1 x Trove1 Backplane for Altronix/CDVI
- 1x Openpath Core
- Elevator Board
- 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
