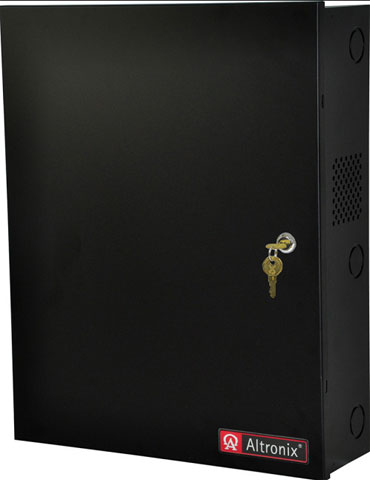

Altronix T1MK14SD Power Device

Part Number: T1MK14SD
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$808.02

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Current
3.50 A
Input Voltage
115 V AC24 V DC12 V DC
Frequency
60 Hz
Maximum Operating Temperature
120.2°F (49°C)

Product Description:

  Power Systems & Supplies, Altronix, 4-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1 with AL400ULXB2, VR6, ACM4CB, PDS8CB
Explore all Altronix Parts Accessories
Add to Quote
Altronix T1MK14SD Power Device
Altronix T1MK14SD Power Device
Altronix T1MK14SD Power Device Altronix T1MK14SD Power Device

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix T1MK14SD Power Device Overview

Altronix T1MK14SD kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual voltage power distribution module and four (4) PTC protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Power Description
Input Current:
3.50 A
Input Voltage:
  • 115 V AC
  • 24 V DC
  • 12 V DC
Frequency:
60 Hz
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
Enclosure - 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
Weight (Approximate):
Enclosure - 16.23 Lbs. (7.36 kg).

Miscellaneous
Package Contents:
  • 1 x Trove1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
  • 1 x TM1 Trove1 Backplane for Altronix & Mercury
  • 1 x AL400ULXB2 Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, Board
  • 1 x VR6 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
  • 1 x ACM4CB Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
  • 1 x PDS8CB Dual Input Power Distribution Module, 8 PTC Outputs
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 31162800
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix T1MK14SD Power Device is also known as ALT-T1MK14SD or T1MK14SD.
