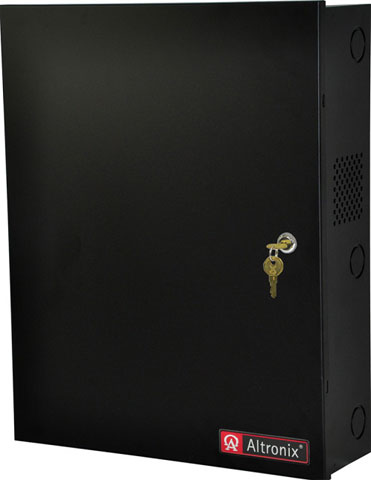

Altronix T1MK14S Power Device

Altronix - Power Systems & Supplies, Altronix, 4-Door Altronix/Mercury Access and Power Integration Kit - Trove1M1 with AL400ULXB2, ACM4, PDS8, VR6
$732.92
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T1MK14S Power Device Overview

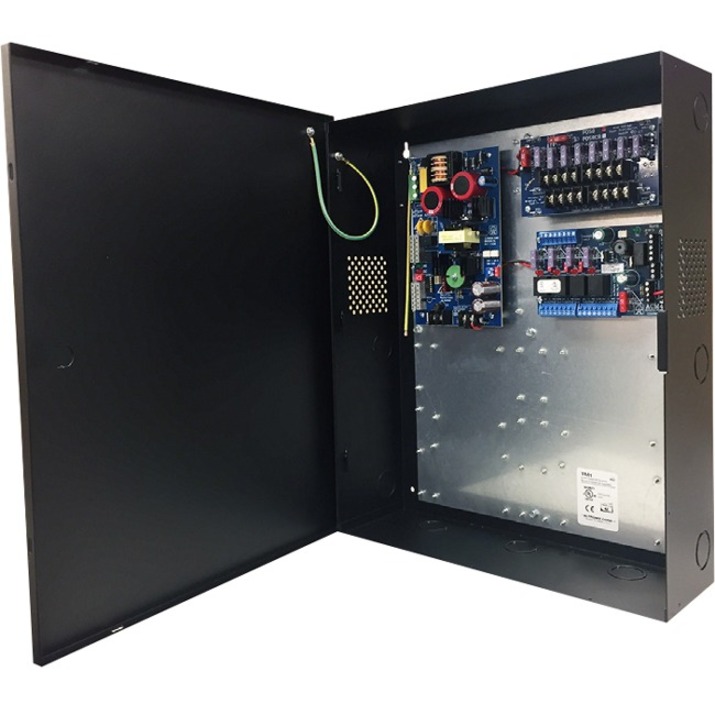

Altronix T1MK14S kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Power Description
Input Current:
3.50 A
Input Voltage:
  • 115 V AC
  • 24 V DC
  • 12 V DC
Frequency:
60 Hz
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
Enclosure - 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).

Weight (Approximate):
Enclosure - 16.23 Lbs. (7.36 kg).

Miscellaneous
Package Contents:
  • 1 x Trove1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
  • 1 x TM1 Trove1 Backplane for Altronix & Mercury
  • 1 x AL400ULXB2 Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, Board
  • 1 x VR6 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
  • 1 x ACM4 Access Power Controller, 4 Fused Relay Outputs, FAI, Board
  • 1 x PDS8 Dual Input Power Distribution Module, 8 Fused Outputs
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 31162800
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix T1MK14S Power Device is also known as ALT-T1MK14S or T1MK14S.
