Altronix T1KE34DV Power Device

Part Number: T1KE34DV
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$745.14

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Current
1.50 A
Input Voltage
220 V AC24 V DC
Frequency
50 Hz60 Hz
Maximum Operating Temperature
120.2°F (49°C)

Product Description:

  Power Systems & Supplies, Altronix, Trove1LU1 - AL600XB220 (6A@12/24VDC) power supply, ACM4CB - 4 PTC Output Access Power Controller. Includes: (5) MM1''S, Camera lock, tamper switch, battery leads and mounting hardware.
Explore all Altronix Parts Accessories
Add to Quote
Altronix T1KE34DV Power Device
Altronix T1KE34DV Power Device
Altronix T1KE34DV Power Device Altronix T1KE34DV Power Device

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix T1KE34DV Power Device Overview

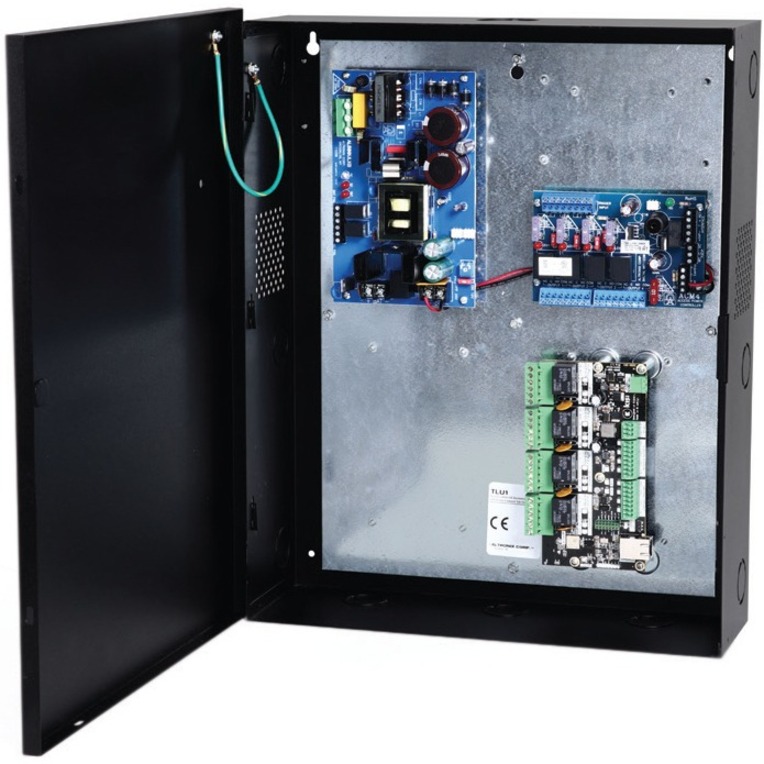

Altronix T1KE34DV kit consists of Trove1 enclosure and TLU1 Altronix & Kisi backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger and four (4) PTC protected output access control modules. This kit also accommodates various combinations of Kisi boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Power Description
Input Current:
1.50 A
Input Voltage:
  • 220 V AC
  • 24 V DC
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
Enclosure - 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).



Weight (Approximate):
Enclosure - 16.23 Lbs. (7.36 kg).

Miscellaneous
Package Contents:
  • 1 x Trove Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
  • 1 x AL600XB220 Power Supply Charger, 12/24VDC @ 6A, 220VAC, Board
  • 1 x ACM4CB Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 31162800
