Protection Type:
- Short Circuit
- Thermal Overload
Altronix SMP7 Accessory
Part Number:
SMP7
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

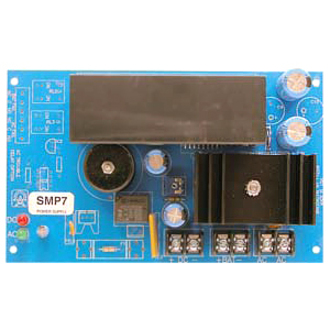

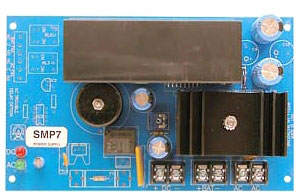

Altronix SMP7 Accessory Overview
This power supply/charger converts a low voltage AC input into 12VDC or 24VDC @ 6 amp continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
28 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Output Current:
6 A
Physical Characteristics
Height:
2"
Width:
3"
Depth:
3.5"
Miscellaneous
Package Contents:
- SMP7 Proprietary Power Supply
- Battery Leads
Compatibility:
- Access Control
- Security and CCTV System
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930722
UPC:
782239930722
EAN:
0782239930722
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix SMP7 Accessory is also known as
ALT-SMP7
