Protection Type:
- Short Circuit
- Thermal Overload
Altronix SMP5PMP16CB Power Device
Part Number:
SMP5PMP16CB
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

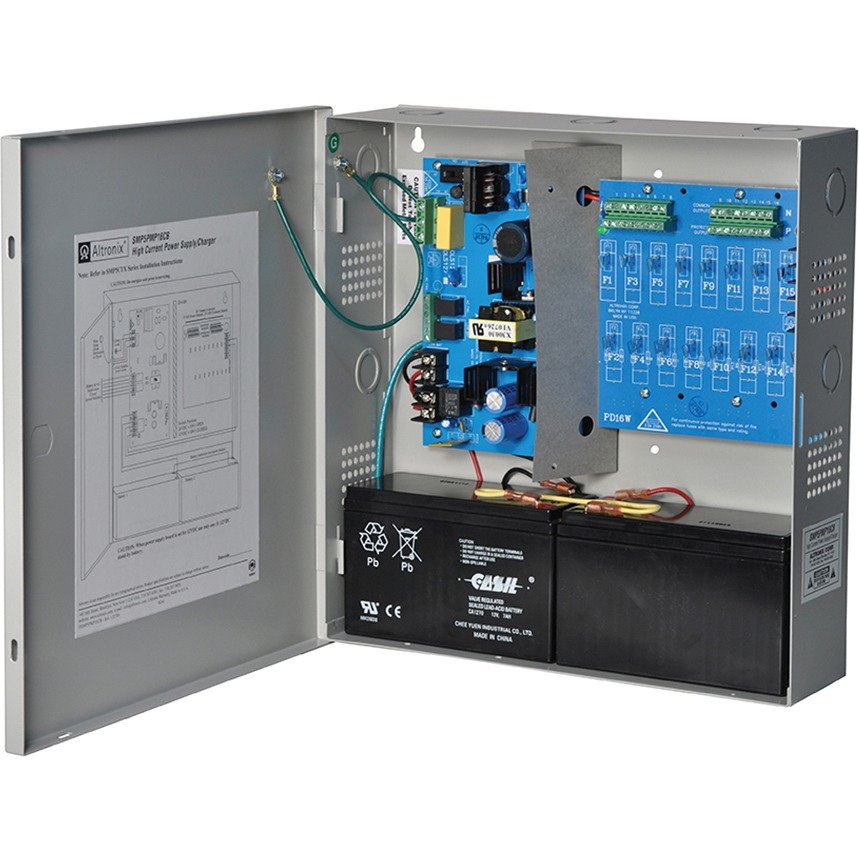

Altronix SMP5PMP16CB Power Device Overview
SMP5PMP16CB is a multi-output power supply/charger that converts a 115VAC/230VAC, 50/60Hz input into sixteen (16) 12VDCor 24VDCoutputs.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
115 V AC - 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 4 A
- 24 V DC @ 4 A
Input Current:
- 950 mA @ 110V
- 500 mA @ 220V
Output Current:
4 A
Controls/Indicators
Status Indicators:
- AC Input LED
- DC Output LED
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
8.70 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
The Altronix SMP5PMP16CB Power Device is also known as
ALT-SMP5PMP16CB
