Full specifications (PDF)
Protection Type:
- Fuse
- Short Circuit
- Thermal Overload
Altronix SMP3PMP4 Power Device
Part Number:
SMP3PMP4
Model:
SMP3PMP4

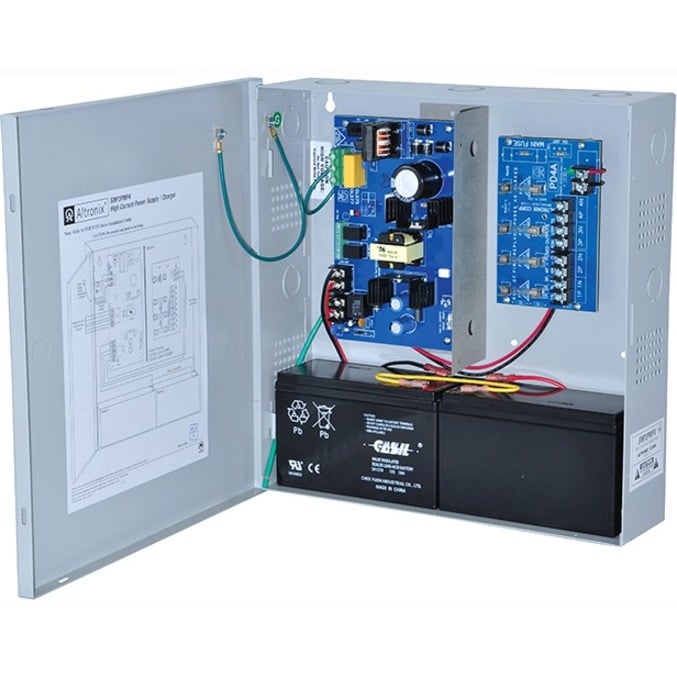

Altronix SMP3PMP4 Power Device Model Overview
Model SMP3PMP4 power supply/charger converts a 115VAC 50/60Hz input, to a 12VDC or 24VDC @ 2.5 amp of continuous supply current distributed via four (4) fuse protected outputs.
Altronix SMP3PMP4 Power Device Overview
Model SMP3PMP4 power supply/charger converts a 115/230VAC 50/60Hz input, to a 12VDC or 24VDC @ 2.5 amp of continuous supply current distributed via four (4) fuse protected outputs.
Technical Information
Power Description
Number of +12V Rails:
4
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
115 V AC - 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 2.5 A
- 24 V DC @ 2.5 A
Input Current:
- 650 mA @ 110V
- 350 mA @ 220V
Output Current:
2.50 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
9.40 lb
Miscellaneous
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239940738, 4703876699885
UPC:
782239940738
EAN:
0782239940738, 4703876699885
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix SMP3PMP4 Power Device is also known as
ALT-SMP3PMP4
