Protection Type:
- Short Circuit
- Thermal Overload

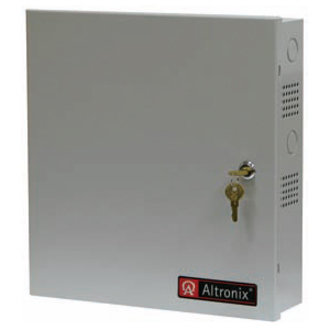

Altronix SMP3PMCTX Accessory
Part Number:
SMP3PMCTX
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix SMP3PMCTX Accessory Overview
Model SMP3PMCTX power supply/charger converts a 115/230VAC 50/60Hz input, to a 12VDC or 24VDC @ 2.5 amp of continuous supply current output.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
115 V AC - 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 2.5 A
- 24 V DC @ 2.5 A
Input Current:
- 650 mA @ 110V
- 350 mA @ 220V
Output Current:
2.50 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Length:
14.8"
Weight (Approximate):
7.10 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930463
UPC:
782239930463
EAN:
0782239930463
UNSPSC:
39121004
The Altronix SMP3PMCTX Accessory is also known as
ALT-SMP3PMCTX
