Protection Type:
- Short Circuit
- Thermal Overload
Altronix SMP3 Power Device
Part Number:
SMP3
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

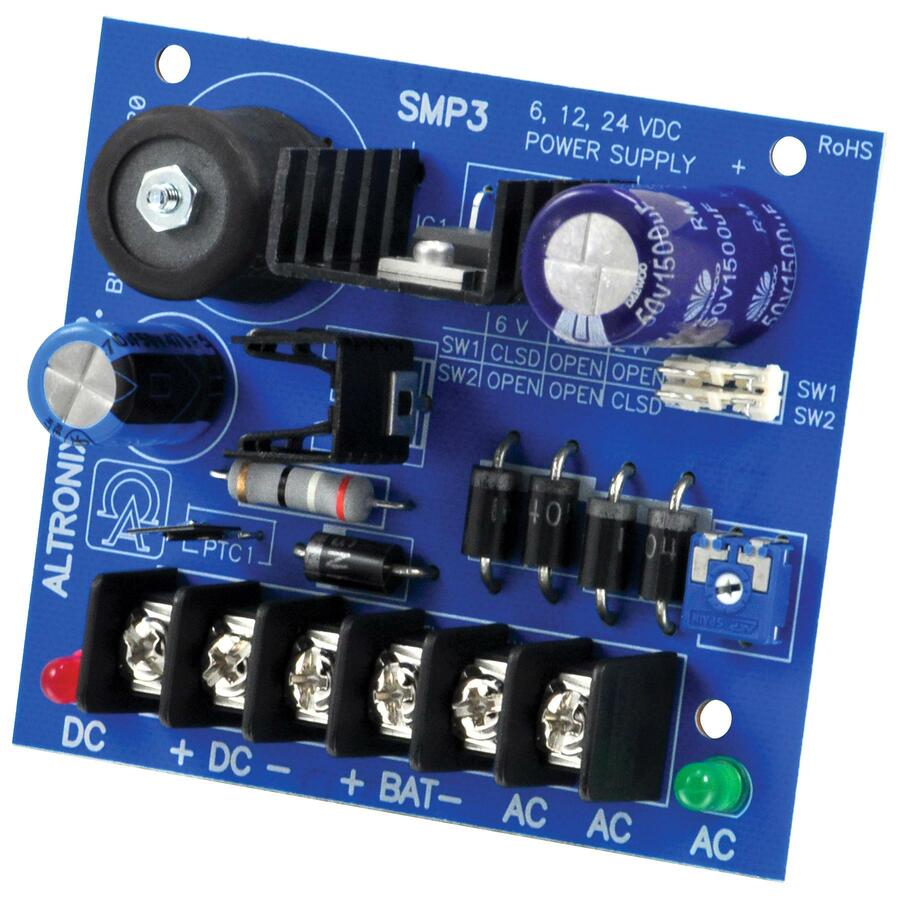

Altronix SMP3 Power Device Overview
Model SMP3 power supply/charger converts low voltage AC input, to a 6VDC, 12VDC or 24VDC @ 2.5 amp of continuous supply current output. Model DPS3 is a DIN Rail Mount version of this product.
Technical Information
Power Description
Input Voltage Type:
AC
Output Voltage:
- 6 V DC
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 6 V DC @ 2.5 A
- 12 V DC @ 2.5 A
- 24 V DC @ 2.5 A
Output Current:
2.50 A
Physical Characteristics
Height:
2"
Width:
3"
Depth:
3.5"
Weight (Approximate):
5.60 oz
Miscellaneous
Package Contents:
- SMP3 Proprietary Power Supply
- Battery Leads
Compatibility:
- Access Control System
- Security and CCTV System
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0722868225240, 0782239930432, 0818256559247, 4703876699861
UPC:
722868225240, 782239930432, 818256559247
EAN:
0722868225240, 0782239930432, 0818256559247, 4703876699861
UNSPSC:
39121004
The Altronix SMP3 Power Device is also known as
ALT-SMP3
