Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload

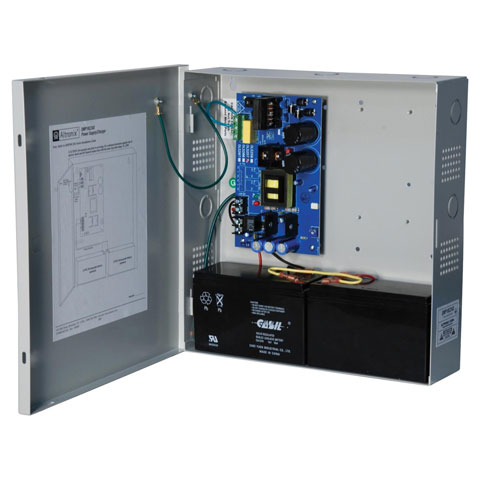

Altronix SMP10PMC24X Power Device
Part Number:
SMP10PMC24X
Model:
SMP10PM12P16
Altronix SMP10PM12P16 Power Device Model Overview
Model SMP10PM12P16 power supply/charger converts a 115VAC 50/60Hz input, to a 12VDC @ 10 amp of continuous supply current distributed via sixteen (16) fuse protected outputs.
Altronix SMP10PMC24X Power Device Overview
Model SMP10PMC24X power supply/charger converts a 115VAC 50/60Hz input, to a 24VDC @ 10 amp of continuous supply current output. Model SMP10C24X is a non-supervised version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 10 A
Input Current:
2.7 A @ 110V
Output Current:
10 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
9.30 lb
Miscellaneous
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239932467
UPC:
782239932467
EAN:
0782239932467
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix SMP10PMC24X Power Device is also known as
ALT-SMP10PMC24X
