Altronix RB1224 Accessory

Part Number: RB1224
Model: ALTV2416
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$20.13
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Contact Type
Double Pole Double Throw (DPDT)
Application/Usage
Door EntrySecurity System
Features
LED Indicator
Minimum Operating Voltage
12 V DC

Product Description:

  Relay Module, 12VDC or 24VDC, 5AMP/115VAC/28V DC
Explore all Altronix ALTV2416 Accessories
Add to Quote
Altronix RB1224 Accessory
Altronix RB1224 Accessory
Altronix RB1224 Accessory
Altronix RB1224 Accessory Altronix RB1224 Accessory Altronix RB1224 Accessory

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix RB1224 Accessory Overview

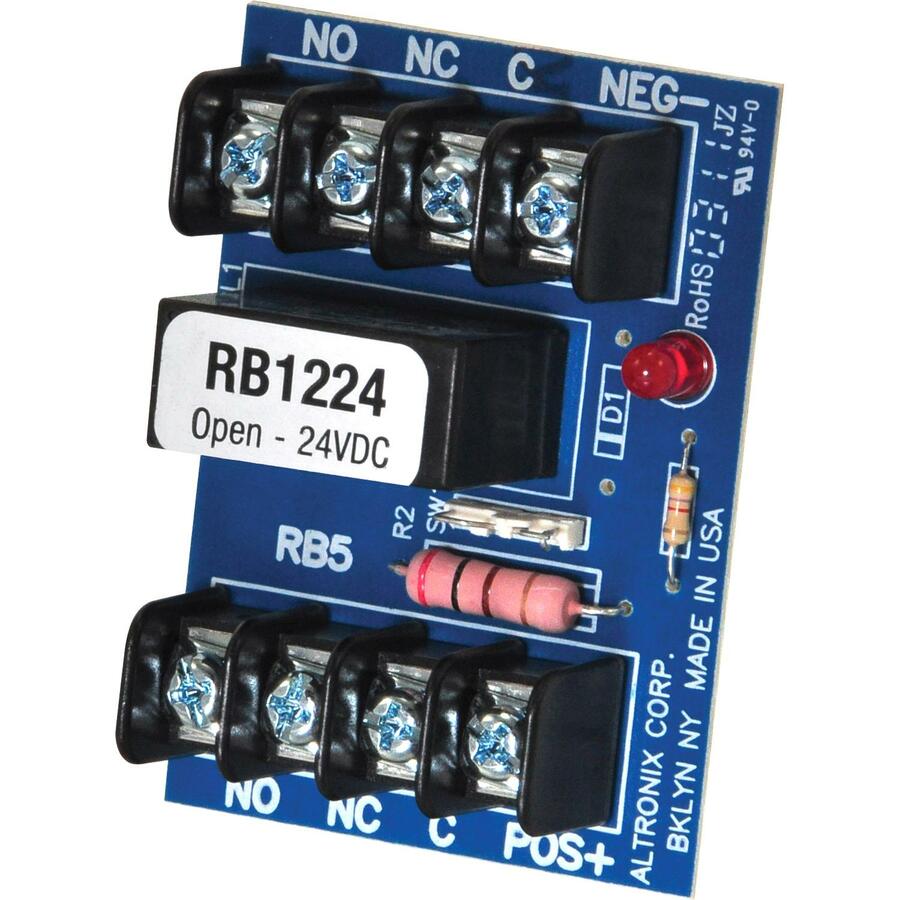

RB1224 Relay Module can be utilized in many different applications such as: Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more. The RB1224 is snap track mountable.
Product Information
Contact Type:
Double Pole Double Throw (DPDT)
Application/Usage:
  • Door Entry
  • Security System
Features:
LED Indicator
Power Description
Minimum Operating Voltage:
12 V DC
Maximum Operating Voltage:
24 V DC
Environmental Conditions
Minimum Operating Temperature:
-13°F (-25°C)
Maximum Operating Temperature:
131°F (55°C)
Minimum Storage Temperature:
-13°F (-25°C)
Maximum Storage Temperature:
158°F (70°C)
Relative Humidity:
85%
Physical Characteristics
Form Factor:
Snap Track
Height:
1"
Width:
2"
Depth:
2.8"
Weight (Approximate):
2.40 oz
Miscellaneous
Additional Information:
  • 12VDC or 24VDC selectable operation
  • Coil draws 75mA
  • 5 amp/120VAC/28VDC DPDT contacts
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239930296, 4703876699762
UPC: 782239930296
EAN: 0782239930296, 4703876699762
