Full specifications (PDF)
Protection Type:
Surge

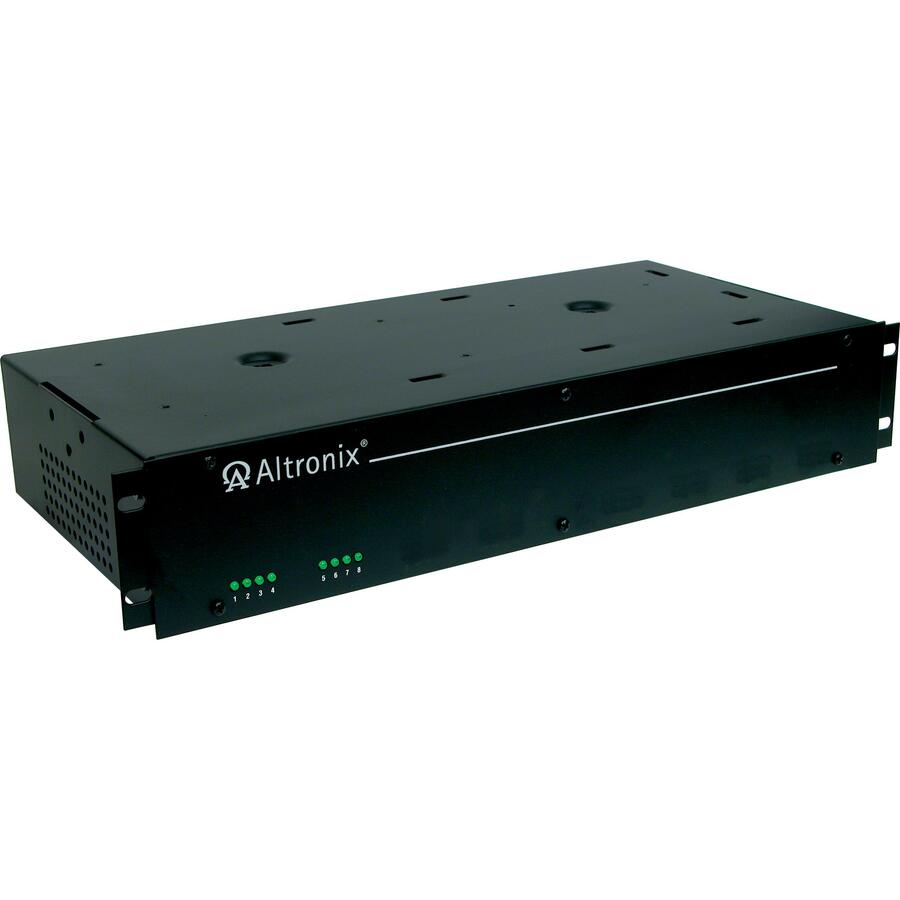

Altronix R248UL Power Device
Part Number:
R248UL
Model:
R248UL
Altronix R248UL Power Device Model Overview
The Altronix Rack Mount Series provides reliable power for your CCTV systems with its UL Listed 24VAC power supplies. Designed for seamless integration in standard 19" racks, the R248UL model offers eight fuse-protected outputs while the R248ULCB variant features PTC protection, ensuring the safety of all connected devices. With surge suppression and built-in circuit breakers, you can depend on this power supply for consistent performance in demanding environments. The modular design facilitates quick installation, making it an excellent choice for video equipment requiring synchronized power.
Key Features:
Specifications:
Key Features:
- UL Listed for safety in the U.S. and Canada
- Provides 24VAC power via eight outputs
- Surge suppression for increased protection
- AC power LED indicators for status monitoring
- Modular 2U design for easy rack installation
- Removable terminal blocks with locking screw flange
Specifications:
- Models: R248UL, R248ULCB
- Input Voltage: 115VAC 50/60Hz
- Total Output Current: 3.5 amp (85VA)
- Output Type: 8 fuse or PTC protected outputs
- Rack Dimensions: 3.25"H x 19.125"W x 8.5"D
- Power Switch: Built-in circuit breaker
- Included: Spare fuses
Altronix R248UL Power Device Overview
These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 3.5 A
- 28 V AC @ 3 A
Input Current:
850 mA @ 110V
Output Current:
- 3.50 A
- 3 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.3"
Width:
19.1"
Depth:
8.5"
Miscellaneous
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936939
UPC:
782239936939
EAN:
0782239936939
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix R248UL Power Device is also known as
ALT-R248UL
