Protection Type:
Surge
Altronix R248600CB Accessory
Part Number:
R248600CB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

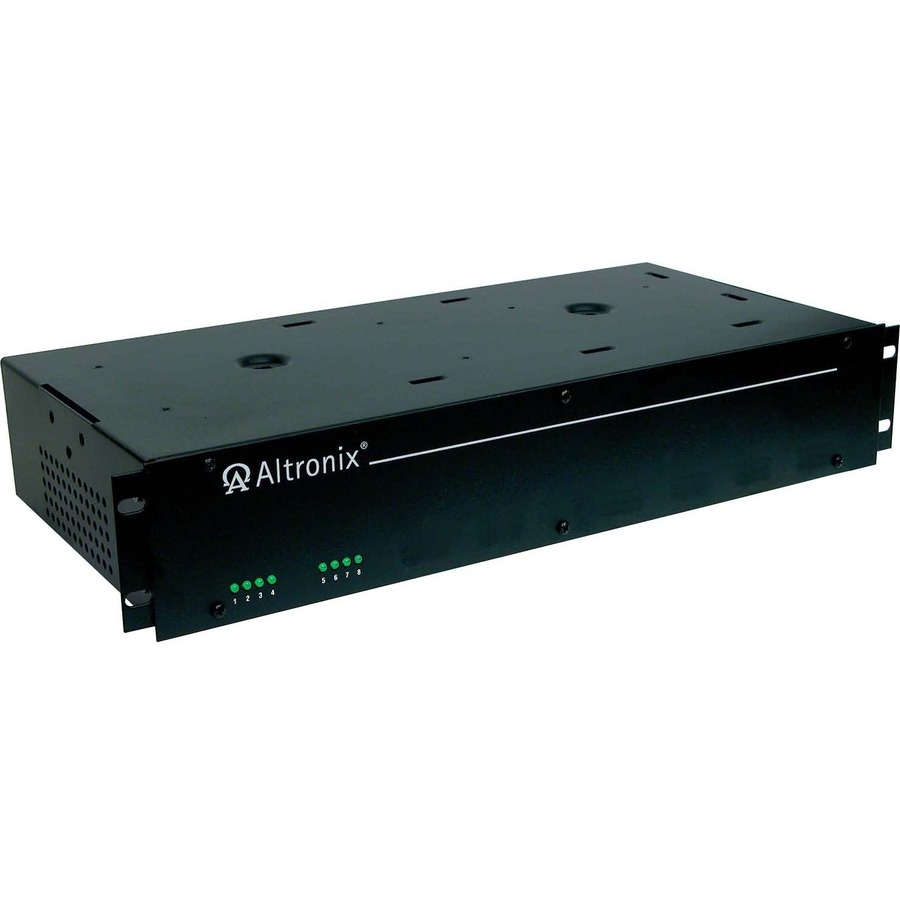

Altronix R248600CB Accessory Overview
R248600CB provides 24VAC or 28VAC distributed via eight (8) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 28 A
- 28 V AC @ 25 A
Input Current:
6 A @ 110V
Output Current:
- 28 A
- 25 A
Output Power:
- 672 W
- 700 W
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.3"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
23 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239945016
UPC:
782239945016
EAN:
0782239945016
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix R248600CB Accessory is also known as
ALT-R248600CB
